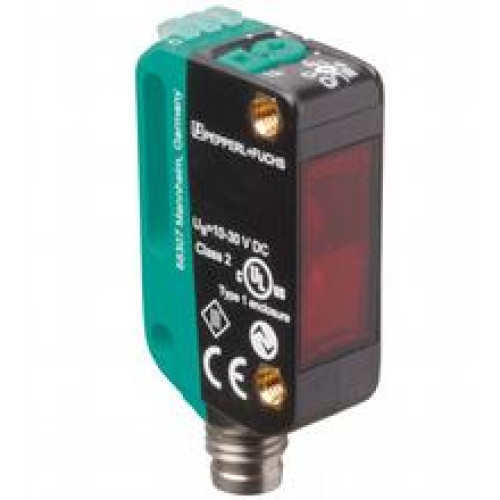

OBG5000-R100-2EP-IO-V31

Retroreflective sensor - Effective detection range: 0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N", Light

Manufacturer's No: 267075-100028     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N", Light source: LED, Light type: modulated visible red light, Signal output: 2 push-p..

Availability On Request

£121.64
  • Detection range:
    • TEACH mode: 0 to 3.5 m
    • Switch position "N": 0 to 5 m
  • Light source: LED
  • Light type: Modulated visible red light
  • Signal output:
    • 2 push-pull (4 in 1) outputs
    • Short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link (via C/Q = pin 4)
  • Switching type: Adjustable
    • Default setting:
      • C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on
      • IO-Link /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on
  • Connection: M8 x 1 connector, 4-pin
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -20 to 60 °C (-4 to 140 °F)


Product

Manufacturer Material ID -
267075-100028
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Pepperl+Fuchs
Pepperl+Fuchs

Availability On Request

£121.64
