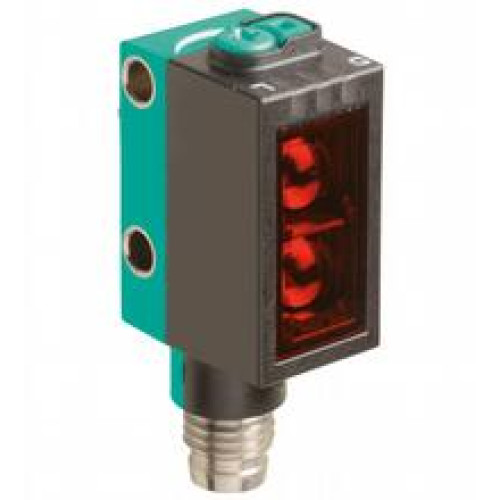

OBR12M-R101-2EP-IO-V31-L

Laser retroreflective sensor - Effective detection range: 0 ... 12 m, Light source: laser diode, Light type: modulated visible red

Manufacturer's No: 267075-0122     Manufacturer: Pepperl+Fuchs
Laser retroreflective sensor - Effective detection range: 0 ... 12 m, Light source: laser diode, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit ..

Availability On Request

£127.75
  • Detection range: 0 to 12 meters
  • Light source: Laser diode
  • Light type: Modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q = pin 4
  • Switching type: Adjustable with default settings for NPN normally open/dark-on and PNP normally closed/light-on
  • Connection: M8 x 1 connector, 4-pin
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F)


Product

Manufacturer Material ID -
267075-0122
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Pepperl+Fuchs
Pepperl+Fuchs

Availability On Request

£127.75
