LD31/LV31/73C/76A/136

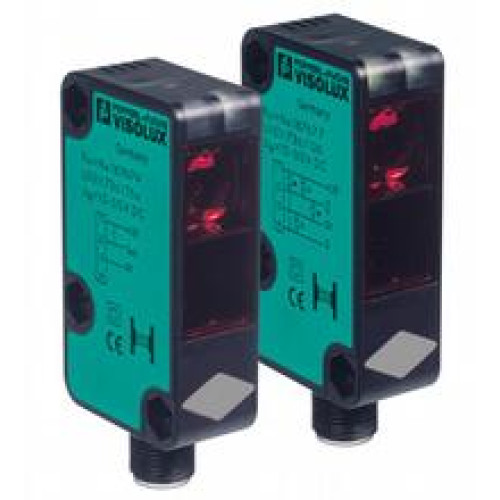

Thru-beam sensor - Effective detection range: 0 ... 30 m, Light source: LED, Light type: modulated visible red light , 630 nm, Sig

Manufacturer's No: 187673     Manufacturer: Pepperl+Fuchs
Thru-beam sensor - Effective detection range: 0 ... 30 m, Light source: LED, Light type: modulated visible red light , 630 nm, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, ..

Availability Available to order

£116.68
  • Detection Range: 0 to 30 meters
  • Light Source: LED
  • Light Type: Modulated visible red light at 630 nm
  • Signal Output: 2 push-pull (4 in 1) outputs, short-circuit and reverse polarity protected
  • Switching Type: Dark-on
  • Connection: 4-pin, M12 x 1 connector
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -30 to 55 °C (-22 to 131 °F)


Product

Manufacturer Material ID -
187673
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
VN
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Pepperl+Fuchs
Pepperl+Fuchs

Availability Available to order

£116.68
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
