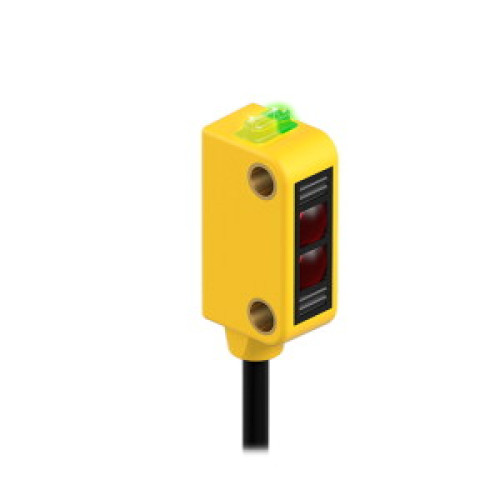

WORLD-BEAM Q12 Series: Emitter, Range: 2 m, Input 10-30 V dc, Output: Not Applicable, 2 m (6.5 ft) Cable

Manufacturer's No: Q126E     Manufacturer: Turck Banner
WORLD-BEAM Q12 Series: Emitter, Range: 2 m, Input 10-30 V dc, Output: Not Applicable, 2 m (6.5 ft) Cable

Availability Available to order

£61.73
  • Photoelectric sensor in opposed mode
  • Miniature sensor with a maximum range of 2000 mm
  • Operating voltage: 10-30 VDC
  • Cable length: 2 m, made of PVC
  • Protection class: IP67
  • LED indicator visible from all angles


Product

Manufacturer Material ID -
Q126E
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39121528

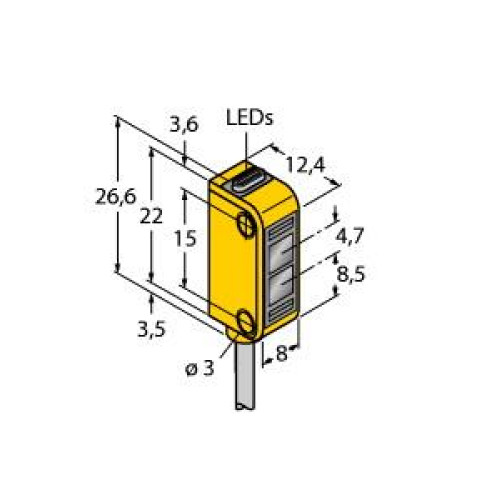

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
26.6 Millimetre
Housing material -
Plastic
Length of sensor -
12.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
1.3 Millisecond
Type of electric connection -
Cable
Type of light -
Polarity free red light
Wavelength of the sensor -
640 Nanometre
Width sensor -
8 Millimetre
Turck Banner

Availability Available to order

£61.73
