3072116

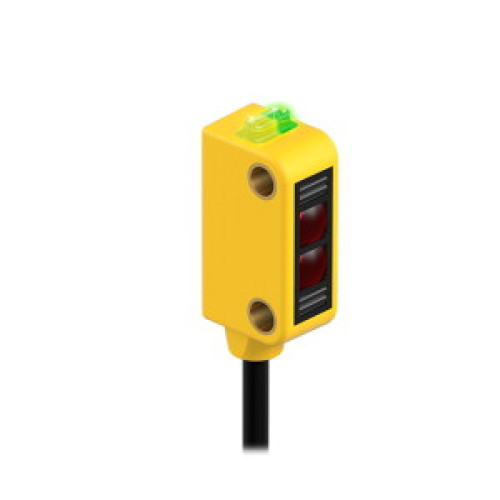

WORLD-BEAM Q12 Series: Fixed-Field, Range: 50 Cutoff, Input: 10-30 V dc, Output: LO (Light Operate) Bipolar: 1 NPN, 1 PNP, 2 m (6.

Manufacturer's No: Q12AB6FF50     Manufacturer: Turck Banner
WORLD-BEAM Q12 Series: Fixed-Field, Range: 50 Cutoff, Input: 10-30 V dc, Output: LO (Light Operate) Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability Back Order

£98.55
  • Series: WORLD-BEAM Q12
  • Type: Fixed-Field
  • Range: 50 mm cutoff
  • Input: 10-30 V dc
  • Output: LO (Light Operate)
  • Bipolar: 1 NPN, 1 PNP
  • Cable Length: 2 meters (6.5 feet)


Product

Manufacturer Material ID -
Q12AB6FF50
Net Weight -

Additional Product Information

Minimum Order Quantity -
1
UNSPSC -
39121528

Technical Specification

-
Turck Banner
Adjustment range -
3 Millimetre
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

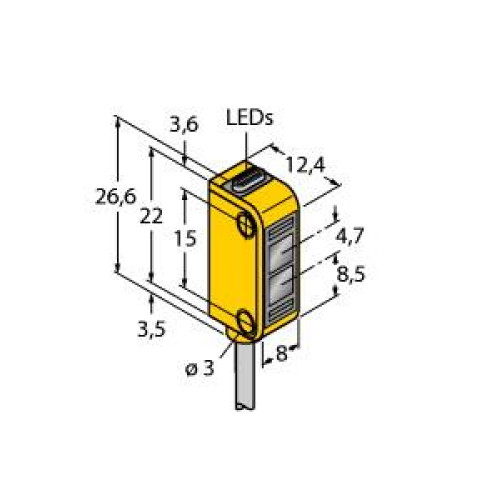

Height of sensor -
26.6 Millimetre
Housing material -
Plastic
Length of sensor -
12.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
50 Millimetre
Rated switching distance -
50 Millimetre
Reaction time -
0.85 Millisecond
Sensing mode -
Light switching
Switching frequency -
700 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
640 Nanometre
Width sensor -
8 Millimetre
Turck Banner

Availability Back Order

£98.55
