72128 {B}

WORLD-BEAM Q12 Series: Polarized Retro, Range: 1 m, Input: 10-30 V dc, Output: LO (Light Operate) Bipolar: 1 NPN, 1 PNP, 2 m (6.5

Manufacturer's No: Q12AB6LP     Manufacturer: Turck Banner
WORLD-BEAM Q12 Series: Polarized Retro, Range: 1 m, Input: 10-30 V dc, Output: LO (Light Operate) Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability Available to order

£134.92
  • Photoelectric sensor with polarizing filter
  • Retroreflective sensor
  • Miniature size
  • Operating voltage: 10-30 VDC
  • Max. range: 1000 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • LED visible from all angles
  • Insufficient excess gain indication
  • Glass lens

Read more

  • Switching output: bipolar, light operation


Product

Manufacturer Material ID -
Q12AB6LP
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39121528

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

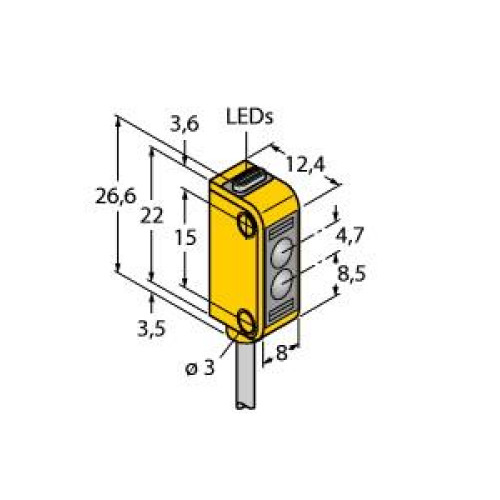

Height of sensor -
26.6 Millimetre
Housing material -
Plastic
Length of sensor -
12.4 Millimetre
Material of optical surface -
Glass
Max. switching distance -
1000 Millimetre
Rated switching distance -
1000 Millimetre
Reaction time -
0.7 Millisecond
Sensing mode -
Light switching
Switching frequency -
700 Hertz
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
640 Nanometre
Width sensor -
8 Millimetre
Turck Banner

Availability Available to order

£134.92
