72119 {B}

WORLD-BEAM Q12 Series: Fixed-Field, Range: 50 Cutoff, Input: 10-30 V dc, Output: DO (Dark Operate) Bipolar: 1 NPN, 1 PNP, 2 m (6.5

Manufacturer's No: Q12RB6FF50     Manufacturer: Turck Banner
WORLD-BEAM Q12 Series: Fixed-Field, Range: 50 Cutoff, Input: 10-30 V dc, Output: DO (Dark Operate) Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability Available to order

£108.46
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Miniature sensor design
  • Operating voltage: 10-30 VDC
  • Maximum range: 50 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • LED provides all-round visibility
  • Indicates insufficient excess gain
  • Switching output: bipolar, dark operation


Product

Manufacturer Material ID -
Q12RB6FF50
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39121528

Technical Specification

Adjustment range -
3 Millimetre
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

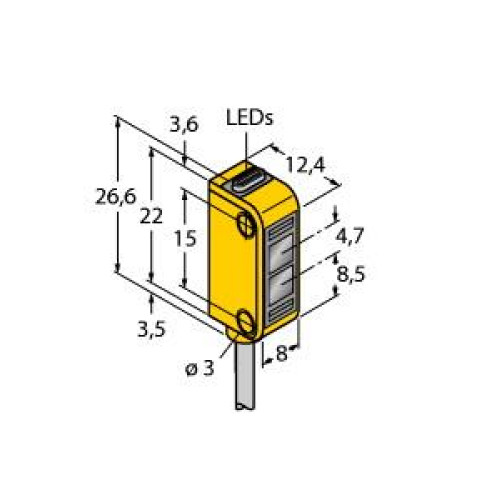

Height of sensor -
26.6 Millimetre
Housing material -
Plastic
Length of sensor -
12.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
50 Millimetre
Rated switching distance -
50 Millimetre
Reaction time -
0.85 Millisecond
Sensing mode -
Dark switching
Switching frequency -
700 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
640 Nanometre
Width sensor -
8 Millimetre
Turck Banner

Availability Available to order

£108.46
