72137 {B}

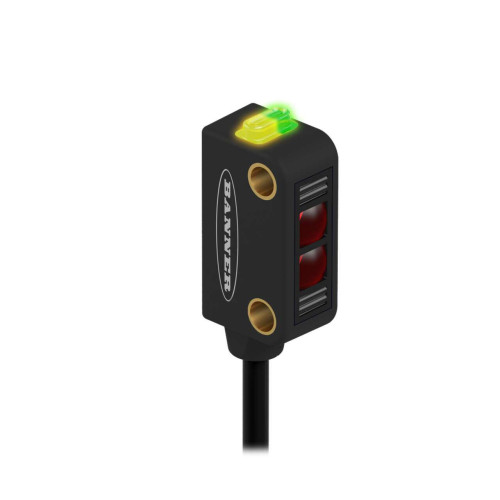

WORLD-BEAM Q12 Series: Receiver, Range: 2 m, Input: 10-30 V dc, Output: DO (Dark Operate) Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cabl

Manufacturer's No: Q12RB6R     Manufacturer: Turck Banner
WORLD-BEAM Q12 Series: Receiver, Range: 2 m, Input: 10-30 V dc, Output: DO (Dark Operate) Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability Available to order

£82.01
  • Type: Photoelectric Sensor (Opposed Mode - Emitter/Receiver)
  • Design: Miniature Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • LED for all-round visibility
  • Indication of insufficient excess gain
  • Switching Output: Bipolar, dark operation


Product

Manufacturer Material ID -
Q12RB6R
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39121528

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

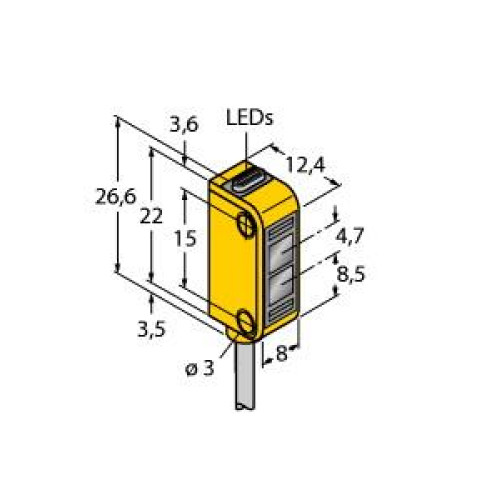

Height of sensor -
26.6 Millimetre
Housing material -
Plastic
Length of sensor -
12.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
1.3 Millisecond
Sensing mode -
Dark switching
Switching frequency -
450 Hertz
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
640 Nanometre
Width sensor -
8 Millimetre
Turck Banner

Availability Available to order

£82.01
