3061618

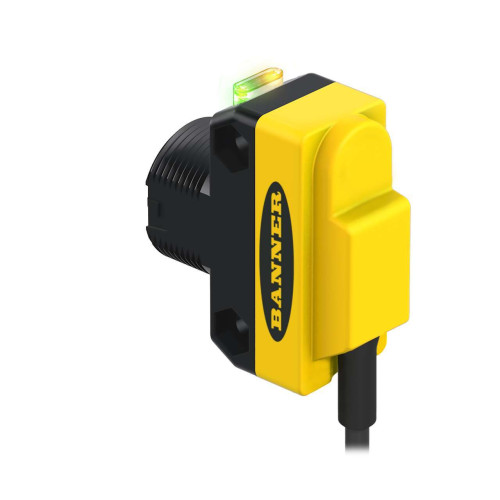

WORLD-BEAM QS18 Series: Emitter, Range: 20 m, Input: 10-30 V dc, Output: Not Applicable, 2 m (6.5 ft) Cable

Manufacturer's No: QS186E     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Emitter, Range: 20 m, Input: 10-30 V dc, Output: Not Applicable, 2 m (6.5 ft) Cable

Availability Back Order

£51.72
  • Series: WORLD-BEAM QS18
  • Type: Emitter
  • Range: 20 meters
  • Input: 10-30 V dc
  • Output: Not Applicable
  • Cable Length: 2 meters (6.5 feet)


Product

Manufacturer Material ID -
QS186E
Net Weight -
0.07kg

Additional Product Information

Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Turck Banner
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Type of electric connection -
Cable
Type of light -
Infrared light
Wavelength of the sensor -
940 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability Back Order

£51.72
