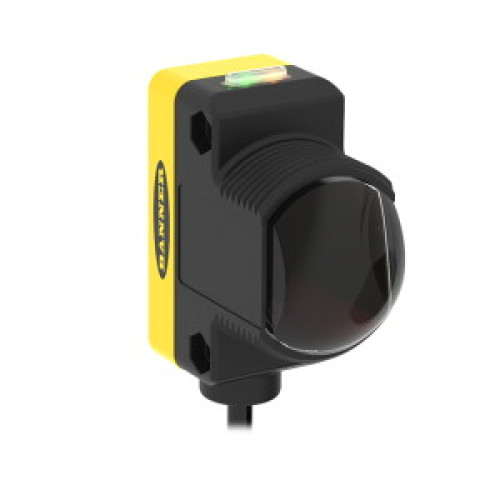

WORLD-BEAM QS30 Series: High-Powered Receiver, Range: 213 m, Input: 10-30 V dc, Output: LO (Light Operate) Bipolar: 1 NPN, 1 PNP,

Manufacturer's No: QS30ARX     Manufacturer: Turck Banner
WORLD-BEAM QS30 Series: High-Powered Receiver, Range: 213 m, Input: 10-30 V dc, Output: LO (Light Operate) Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable (CAR WASH)

Availability Available to order

POA
  • Type: Photoelectric Sensor, Opposed Mode (Emitter/Receiver)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 213000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • Features: LED all-round visible, Selectable operating frequency, 4-segment bargraph
  • Switching Output: Bipolar, light operation


Product

Manufacturer Material ID -
QS30ARX
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39122216

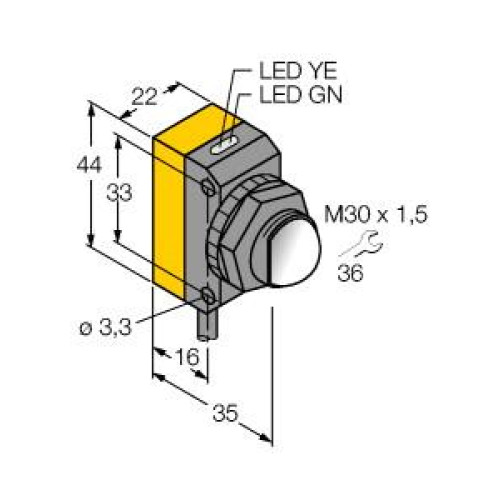

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
213000 Millimetre
Rated switching distance -
213000 Millimetre
Reaction time -
5 Millisecond
Sensing mode -
Light switching
Setting procedure -
Other
Switching frequency -
16 Hertz
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
875 Nanometre
Width sensor -
22 Millimetre
