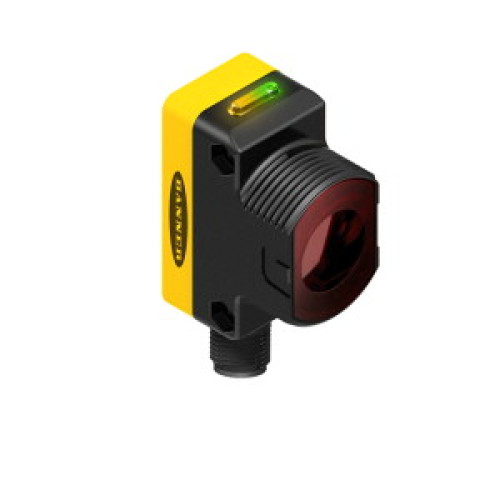

WORLD-BEAM QS30 Series: Fixed-Field, Range: 200, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Manufacturer's No: QS30FF200Q     Manufacturer: Turck Banner
WORLD-BEAM QS30 Series: Fixed-Field, Range: 200, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Availability Available to order

POA
  • Photoelectric sensor in diffuse mode
  • Fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 200 mm
  • Male M12 x 1, 5-pin connector
  • Protection class: IP67
  • LED visible from all angles
  • Switching output: bipolar
  • Suitable for light or dark operation


Product

Manufacturer Material ID -
QS30FF200Q
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39122216

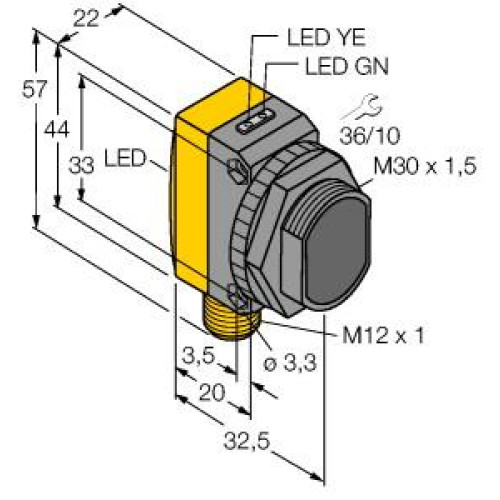

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
57 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
200 Millimetre
Rated switching distance -
200 Millimetre
Reaction time -
2 Millisecond
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
680 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability Available to order

POA
