3070231

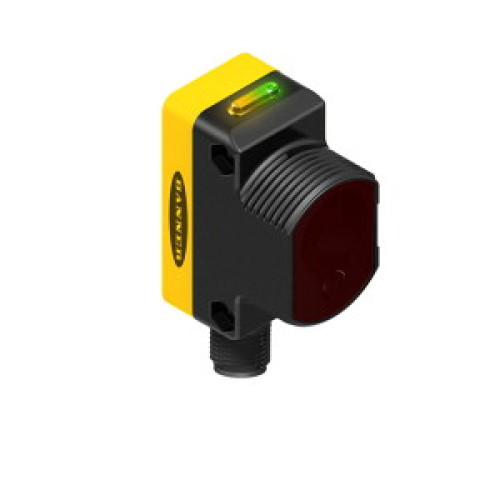

WORLD-BEAM QS30 Series: Laser Diffuse (Class 1), Range: 400, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral

Manufacturer's No: QS30LDQ     Manufacturer: Turck Banner
WORLD-BEAM QS30 Series: Laser Diffuse (Class 1), Range: 400, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Availability Back Order

£202.67
  • Type: Laser Diffuse (Class 1)
  • Range: 400 mm
  • Input: 10-30 V dc
  • Output: Bipolar - 1 NPN, 1 PNP
  • Connector: 5-pin M12 Integral QD


Product

Manufacturer Material ID -
QS30LDQ
Net Weight -

Additional Product Information

Minimum Order Quantity -
1
UNSPSC -
39121528

Technical Specification

-
Turck Banner
Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
57 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
400 Millimetre
Reaction time -
0.5 Millisecond
Switching frequency -
1000 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
650 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability Back Order

£202.67
