02993 {B}

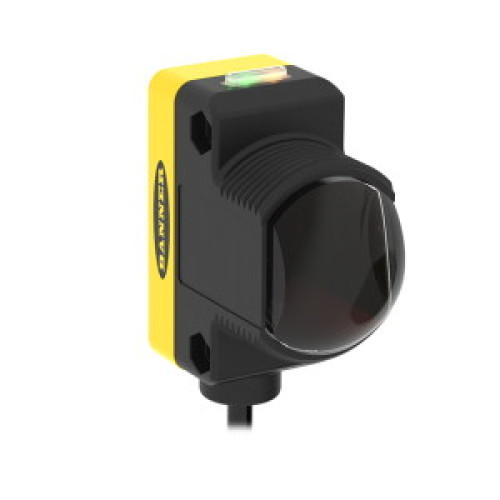

WORLD-BEAM QS30: Long Range Laser Polarized Retro, Range: 0.2-18 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft)

Manufacturer's No: QS30LLP     Manufacturer: Turck Banner
WORLD-BEAM QS30: Long Range Laser Polarized Retro, Range: 0.2-18 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability Available to order

£243.61
  • Photoelectric Sensor, Retroreflective with Polarizing Filter
  • Operating Voltage: 10-30 VDC
  • Max. Range: 18000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • Compact Design with Rectangular Profile
  • LED All-round Visibility
  • Reflector BRT-36X40BM and Self-adhesive Reflector Foil BRT-THVG-2X2 included
  • Excess Gain for Long Range
  • Switching Output: Bipolar

Read more

  • Light or Dark Operation


Product

Manufacturer Material ID -
QS30LLP
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39121528

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

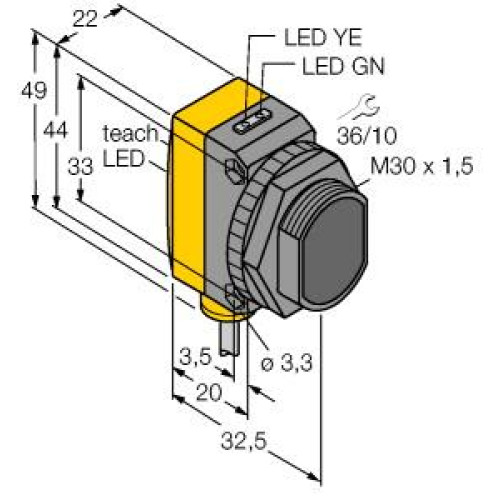

Diameter sensor -
30 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
35 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
18000 Millimetre
Rated switching distance -
18000 Millimetre
Reaction time -
0.5 Millisecond
Setting procedure -
Manual adjustment
Switching frequency -
1000 Hertz
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
650 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability Available to order

£243.61
