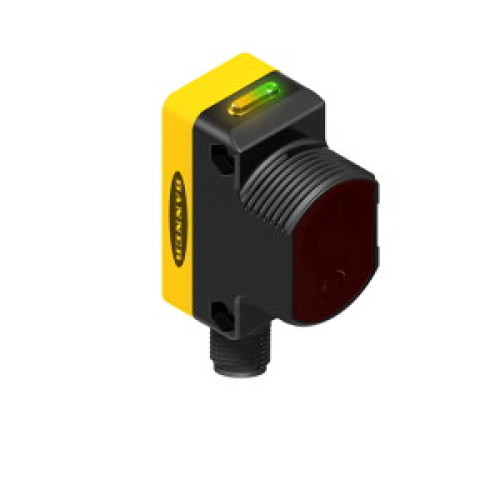

WORLD-BEAM QS30: Low Contrast Laser Polar Retro, Range: 0.2-18 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1PNP, 5-pin M12 Integ

Manufacturer's No: QS30LLPCQ     Manufacturer: Turck Banner
WORLD-BEAM QS30: Low Contrast Laser Polar Retro, Range: 0.2-18 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1PNP, 5-pin M12 Integral QD

Availability Available to order

£243.61
  • Photoelectric Sensor with Polarizing Filter
  • Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Maximum Range: 18000 mm
  • Male M12 × 1, 5-pin connector
  • Protection Class: IP67
  • Compact design with rectangular profile
  • LED visible from all angles
  • Includes BRT-36X40BM reflector
  • Includes self-adhesive reflector foil BRT-THVG-2X2

Read more

  • Excess gain for long-range detection
  • Switching output in bipolar mode
  • Light or dark operation mode


Product

Manufacturer Material ID -
QS30LLPCQ
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39121528

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

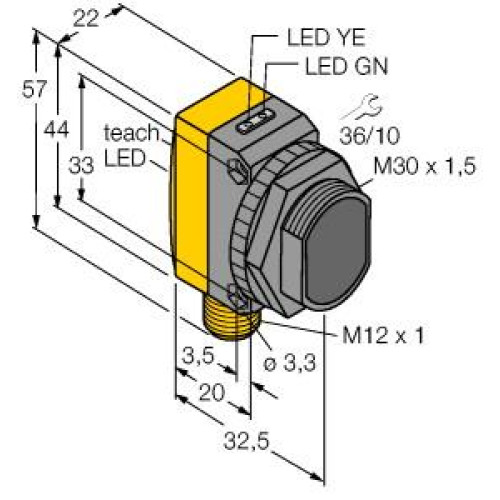

Diameter sensor -
30 Millimetre
Height of sensor -
57 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
35 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
18000 Millimetre
Rated switching distance -
18000 Millimetre
Reaction time -
0.5 Millisecond
Setting procedure -
Manual adjustment
Switching frequency -
1000 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
650 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability Available to order

£243.61
