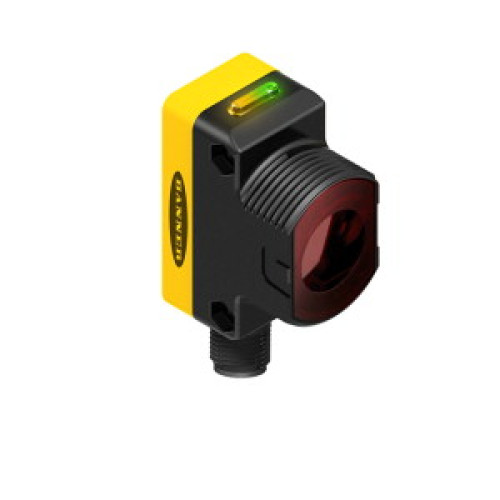

73084 {B}

WORLD-BEAM QS30 Series: Polarized Retro, Range: 8 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Manufacturer's No: QS30LPQ     Manufacturer: Turck Banner
WORLD-BEAM QS30 Series: Polarized Retro, Range: 8 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Availability Available to order

£116.51
  • Photoelectric sensor with retroreflective design and polarizing filter
  • Operating voltage: 10-30 VDC
  • Maximum range: 8000 mm
  • Male M12 × 1, 5-pin connector
  • Protection class: IP67
  • LED indicator visible from all angles
  • Sensitivity adjustment via potentiometer
  • Switching output: bipolar for light or dark operation


Product

Manufacturer Material ID -
QS30LPQ
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39121528

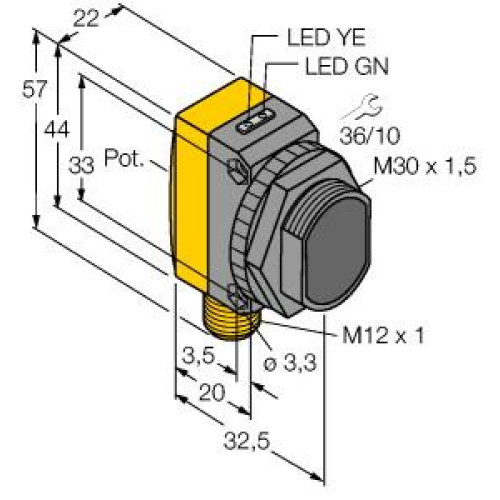

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
57 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
8000 Millimetre
Rated switching distance -
8000 Millimetre
Reaction time -
2 Millisecond
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
630 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability Available to order

£116.51
