73078 {B}

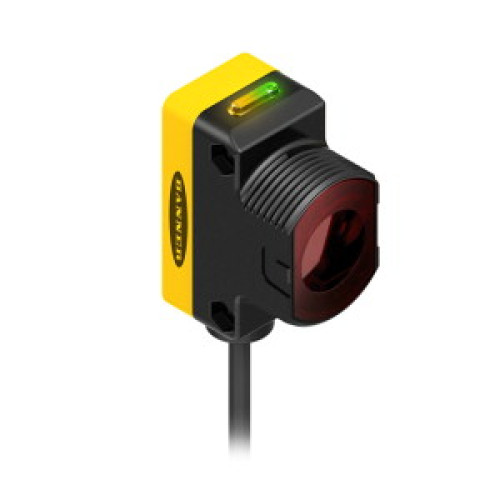

WORLD-BEAM QS30 Series: Receiver, Range: 60 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Manufacturer's No: QS30R     Manufacturer: Turck Banner
WORLD-BEAM QS30 Series: Receiver, Range: 60 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability Available to order

£97.09
  • Photoelectric Sensor
  • Opposed Mode Sensor (Emitter/Receiver)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 60000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • LED All-round Visible
  • Switching Output: Bipolar
  • Light or Dark Operation


Product

Manufacturer Material ID -
QS30R
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39121528

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

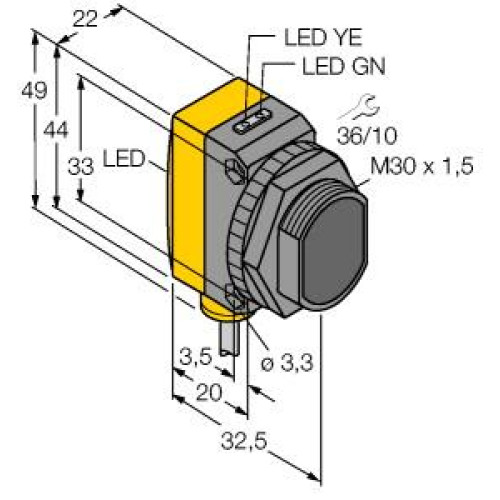

Diameter sensor -
30 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
60000 Millimetre
Rated switching distance -
60000 Millimetre
Reaction time -
5 Millisecond
Switching frequency -
100 Hertz
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
22 Millimetre
Turck Banner

Availability Available to order

£97.09
