50142449

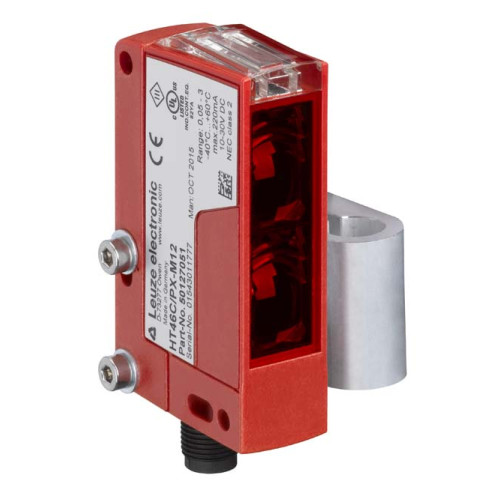

Pre-mounted with: Mounting system; Special version: AS-Interface, connection via coupling module, Article set; Operating range lim

Manufacturer's No: SET HT46CI/PX-200+BTU300M-D10     Manufacturer: Leuze
Pre-mounted with: Mounting system; Special version: AS-Interface, connection via coupling module, Article set; Operating range limit: 0.005 ... 3 m; Light source: LED, Infrared; Supply voltage: 10 ..

Availability On Request

£177.00
  • Operating Range: 0.005m to 3m
  • Light Source: LED, Infrared
  • Supply Voltage: 10V to 30V DC
  • Digital Switching Outputs: 1 Transistor (PNP)
  • Switching Output Type: Dark switching
  • Switching Frequency: 250 Hz
  • Connection: 200mm Cable with M12 4-pin Plastic Connector
  • Housing Design: Cubic, Plastic Material
  • Dimensions: 20.5mm x 76.3mm x 44mm
  • Operational Controls: Multiturn Potentiometer

Read more

  • Ambient Temperature: -40°C to 60°C
  • Degree of Protection: IP67, IP69K

Accessories

Component part



Product

Manufacturer Material ID -
SET HT46CI/PX-200+BTU300M-D10
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Adjustment range -
120 Millimetre
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
76.3 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
44 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. output current at protected output -
0 Milliampere
Maximum output current -
100 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Operating distance -
5 Millimetre
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Reaction time -
2 Millisecond
Sensing mode -
Dark switching
Setting procedure -
Manual adjustment
Switching frequency -
250 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Triangulation -
Background fade-out
Type of electric connection -
Cable with connector
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
860 Nanometre
Width sensor -
20.5 Millimetre
Leuze

Availability On Request

£177.00
