50148863

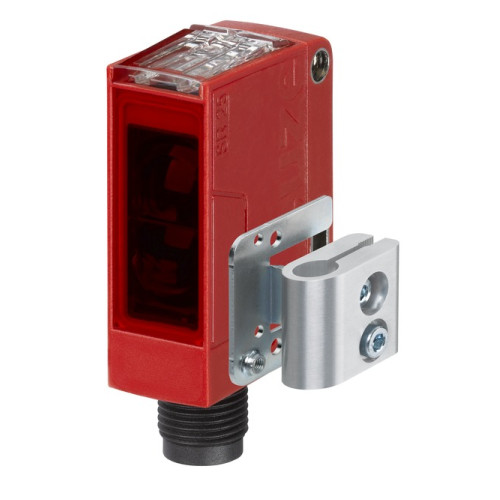

Application: Detection of stretch-wrapped objects; Pre-mounted with: Mounting system; Special version: Article set; Operating rang

Manufacturer's No: SET PRK25CD4PM12 BTU305M25D12     Manufacturer: Leuze
Application: Detection of stretch-wrapped objects; Pre-mounted with: Mounting system; Special version: Article set; Operating range limit: 0.05 ... 10 m; Light source: LED, Red; Supply voltage: 10 ..

Availability On Request

£144.00
  • Application: Detection of stretch-wrapped objects
  • Operating range limit: 0.05 to 10 m
  • Light source: Red LED
  • Supply voltage: 10 to 30 V DC
  • Digital switching outputs: 2 pieces
  • Switching output 1: Transistor, PNP, Light switching
  • Switching output 2: Transistor, PNP, Dark switching
  • Switching frequency: 1,500 Hz
  • Connection: M12 Connector, PUR, 4-pin
  • Design: Cubic housing

Read more

  • Dimensions: 15 mm x 42.7 mm x 30 mm
  • Housing material: Plastic
  • Ambient temperature, operation: -40 to 60 °C
  • Degree of protection: IP 69K, IP 67

Accessories

Component part



Product

Manufacturer Material ID -
SET PRK25CD4PM12 BTU305M25D12
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
Other
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
42.7 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
30 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
8000 Millimetre
Maximum output current -
100 Milliampere
Min. reflector distance -
50 Millimetre
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
8000 Millimetre
Reaction time -
0.33 Millisecond
Sensing mode -
Light switching
Switching frequency -
1500 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
640 Nanometre
Width sensor -
15 Millimetre
Leuze

Availability On Request

£144.00
