50150728

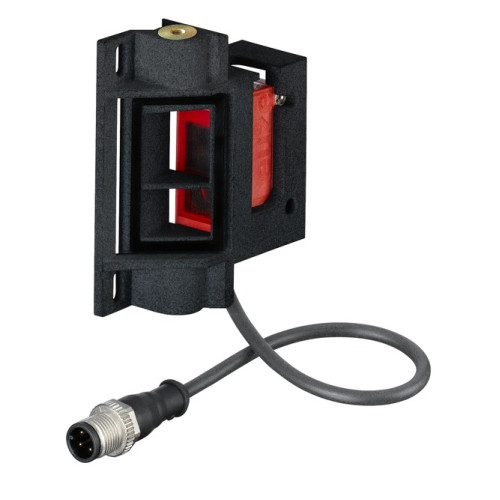

Pre-mounted with: Mounting system; Special version: Permanently set range 300 mm, Article set, Suppression of HF illumination (LED

Manufacturer's No: SETHT25CI-300F.HF/4P410M12 BTX     Manufacturer: Leuze
Pre-mounted with: Mounting system; Special version: Permanently set range 300 mm, Article set, Suppression of HF illumination (LED); Operating range limit: 0 ... 1.3 m; Light source: LED, Infrared; Su

Availability Back Order

POA
  • Operating range limit: 0 to 1.3 m
  • Special version: Permanently set range of 300 mm
  • Light source: LED, Infrared
  • Supply voltage: 10 to 30 V DC
  • Digital switching outputs: 2
  • Switching output 1: Transistor, PNP, Light switching
  • Switching output 2: Transistor, PNP, Dark switching
  • Switching frequency: 250 Hz
  • Connection: Cable with connector, 200 mm, M12, PUR, 4-pin
  • Dimensions: 15 mm x 42.7 mm x 30 mm

Read more

  • Housing material: Plastic
  • Operational controls: Multiturn potentiometer
  • Ambient temperature, operation: -40 to 60 °C
  • Degree of protection: IP 67, IP 69K

Accessories

Component part



Product

Manufacturer Material ID -
SETHT25CI-300F.HF/4P410M12 BTX
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
32121702

Technical Specification

Thumbnail of product picture -
Adjustment range -
50 Millimetre
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
42.7 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. output current at protected output -
0 Milliampere
Maximum output current -
100 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operating distance -
0 Millimetre
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Reaction time -
2 Millisecond
Sensing mode -
Light switching
Setting procedure -
Manual adjustment
Switching frequency -
250 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Triangulation -
Background fade-out
Type of electric connection -
Cable with connector
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
850 Nanometre
Width sensor -
15 Millimetre
Leuze

Availability Back Order

POA
