3803223

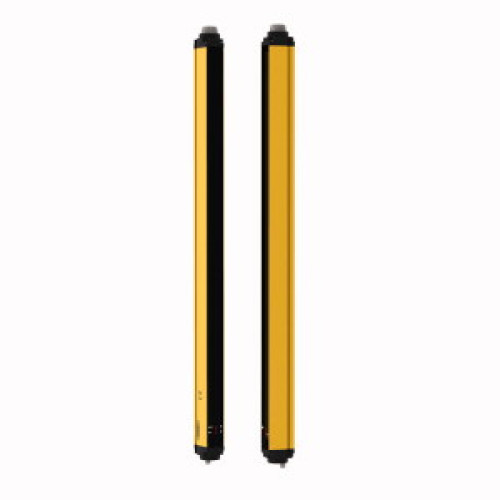

SGS Safety Grid System, Emitter/Receiver Pair, Beams: 4, Resolution: 300, Range: 6 to 60 m, 8-pin M12 Integral QD, Scan Codes, Aut

Manufacturer's No: SGSXP4-300Q88     Manufacturer: Turck Banner
SGS Safety Grid System, Emitter/Receiver Pair, Beams: 4, Resolution: 300, Range: 6 to 60 m, 8-pin M12 Integral QD, Scan Codes, Auto/Manual Start/Restart, EDM, Mounting Hardware Ordered Separately

Availability On Request

£1,781.15
  • Safety Light Curtain with 4 beams
  • Beam spacing: 300 mm
  • Max. range: 60,000 mm
  • Emitter and receiver pair with 4 light beams
  • Resolution: 300 mm
  • Operating voltage: 19.2 to 28.8 VDC
  • Receiver: M12 male connector, 8-pin
  • Emitter: M12 male connector, 8-pin
  • Scan codes for automatic/manual start/restart
  • Range: 60 m

Read more

  • Operating voltage: 24 VDC ±20%
  • Scan field: 900 mm
  • SIL 3 (IEC 61508) and PL e (ISO 13849-1) rated


Product

Manufacturer Material ID -
SGSXP4-300Q88
Net Weight -
5.10kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
HU
UNSPSC -
39121534

Technical Specification

Ambient temperature -
0 Degrees celsius
Height -
1006.35 Millimetre
Length -
56.9 Millimetre
Max. output current at protected output -
500 Milliampere
Number of beams -
4
Reaction time -
14 Millisecond
Wavelength of the sensor -
950 Nanometre
Width -
52 Millimetre
Turck Banner

Availability On Request

£1,781.15
