3803224

SGS Safety Grid System, Emitter/Receiver Pair, Beams: 4, Resolution: 400, Range: 6 to 60 m, 8-pin M12 Integral QD, Scan Codes, Aut

Manufacturer's No: SGSXP4-400Q88     Manufacturer: Turck Banner

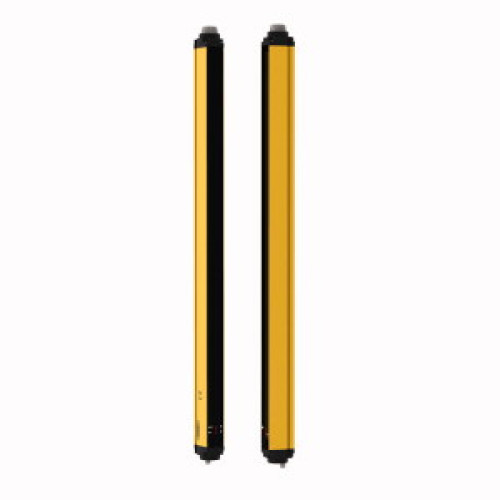

SGS Safety Grid System, Emitter/Receiver Pair, Beams: 4, Resolution: 400, Range: 6 to 60 m, 8-pin M12 Integral QD, Scan Codes, Auto/Manual Start/Restart, EDM, Mounting Hardware Ordered Separately

Availability On Request

£1,909.09
  • Safety Light Curtain with Emitter and Receiver
  • 4 beams with a beam spacing of 400 mm
  • Maximum range of 60000 mm
  • Operating voltage: 19.2 to 28.8 VDC
  • Light beams: 4 with a resolution of 400 mm
  • Emitter and Receiver both have M12 male connectors with 8-pin QD
  • Scan codes for automatic/manual start/restart, EDM
  • Range of 60 m with a scan field of 1200 mm
  • Operating voltage of 24 VDC ±20%
  • Safety Integrity Level 3 (SIL 3) according to IEC 61508

Read more

  • Performance Level e (PL e) according to ISO 13849-1


Product

Manufacturer Material ID -
SGSXP4-400Q88
Net Weight -
6.85kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
HU
UNSPSC -
39121534

Technical Specification

Ambient temperature -
0 Degrees celsius
Height -
1306.35 Millimetre
Length -
56.9 Millimetre
Max. output current at protected output -
500 Milliampere
Number of beams -
4
Reaction time -
14 Millisecond
Wavelength of the sensor -
950 Nanometre
Width -
52 Millimetre
Turck Banner

Availability On Request

£1,909.09
