2CDS272011R0404

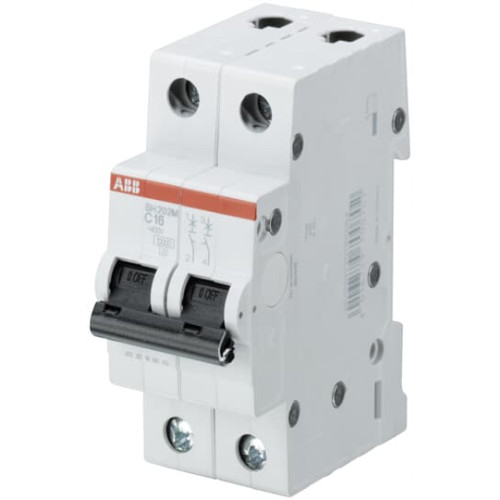

SH202M-C40 Miniature Circuit Breaker - 2P - C - 40 A

Manufacturer's No: SH202M-C40     Manufacturer: ABB
SH202M-C40 Miniature Circuit Breaker - 2P - C - 40 A

Availability On Request

£59.86
  • Product: SH202M-C40 Miniature Circuit Breaker
  • Configuration: 2P
  • Current Rating: 40 A


Product

Manufacturer Material ID -
SH202M-C40
Net Weight -
1.29kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
UNSPSC -
39121601

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
2
Number of protected poles -
2
Over voltage category -
3
Pollution degree -
2
Power loss -
9.6 Watt
Rated current -
40 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated voltage -
400 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
Other
Width in number of modular spacings -
2
ABB

Availability On Request

£59.86
