3807139

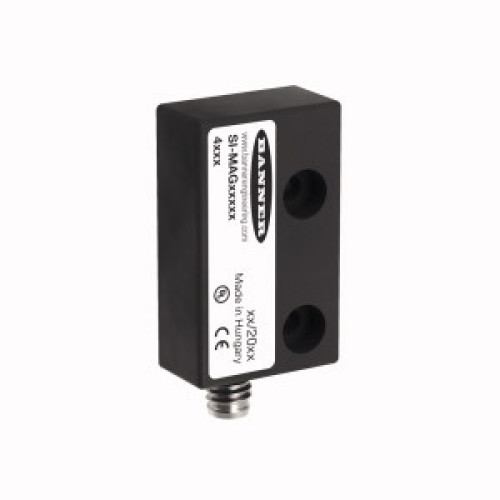

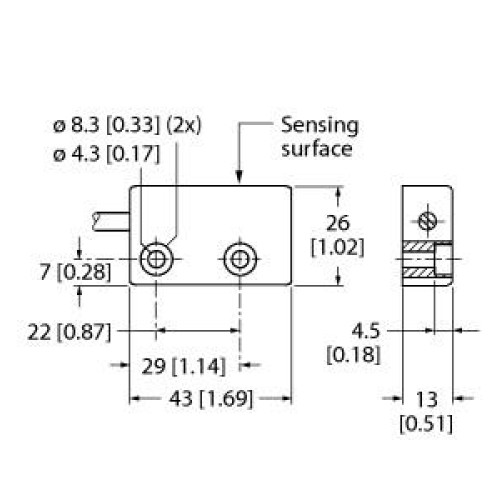

Magnetic Switch: Small Rectangular Sensor, Repeat Switching Accuracy: +/- 0.1, Dimensions: 43 x 26, 4-pin M8 Integral QD, Used Wit

Manufacturer's No: SI-MAGB2SMQD     Manufacturer: Turck Banner
Magnetic Switch: Small Rectangular Sensor, Repeat Switching Accuracy: +/- 0.1, Dimensions: 43 x 26, 4-pin M8 Integral QD, Used With Model: SI-MAGB2MM

Availability On Request

£65.33
  • Safety switches with magnetic technology
  • Maximum range: 14 mm
  • Contactless switch
  • Tamper-proof using coded magnets
  • Requires coded magnets SI-MAGB2MM for operation
  • SIL 3 (IEC 61508) and PL e (ISO 13849-1) certified
  • 1 normally closed (NC) contact
  • 1 normally open (NO) contact


Product

Manufacturer Material ID -
SI-MAGB2SMQD
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
HU
UNSPSC -
39122216

Technical Specification

Degree of protection (IP rating) -
IP67
Housing material -
Plastic
Turck Banner

Availability On Request

£65.33
