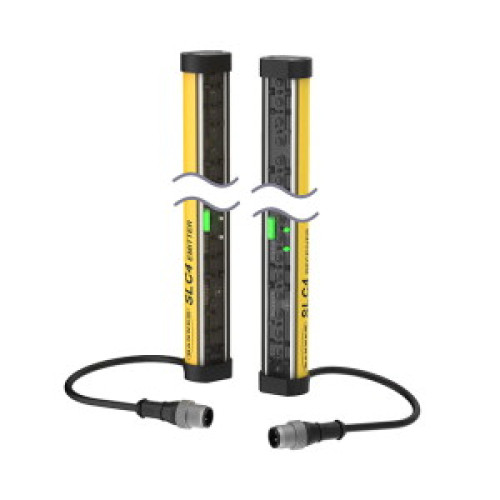

Safety Light Curtain, Emitter/Receiver Pair

Manufacturer's No: SLC4P14-160P44     Manufacturer: Turck Banner
Safety Light Curtain, Emitter/Receiver Pair

Availability On Request

£617.92
  • Safety Light Curtain: Emitter/Receiver Pair
  • Operating Voltage: 20.4 - 27.6 VDC
  • Max. Range: 2000 mm
  • Cable Length: 0.3 m
  • Protection Class: IP65
  • Scan Field: 160 mm

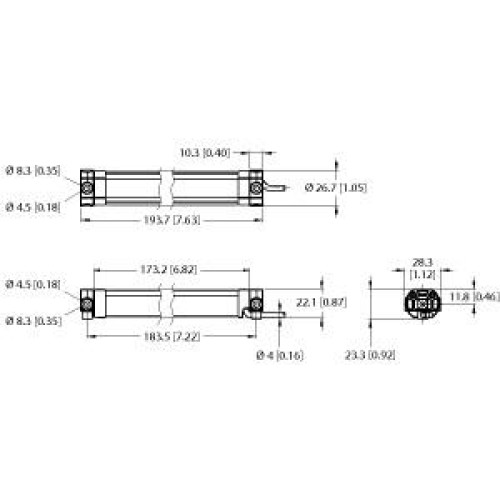

  • Length: 173.2 mm
  • High Immunity to EMI, RFI, Ambient Light, Welding Sparks, and Strobe Light
  • 2x OSSD Output
  • Safety Standards: Type 4 acc. to IEC 61496-1 and 61496-2, Category 4 Ple acc. to EN ISO 13849-1, SIL 3 acc. to IEC 61508 SIL 3 and CL3 acc. to IEC 62061

Read more

  • Shock and Vibration Resistant acc. to IEC 61496-1


Product

Manufacturer Material ID -
SLC4P14-160P44
Net Weight -
0.47kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
43211902

Technical Specification

Ambient temperature -
-20 Degrees celsius
Height of sensor -
173.2 Millimetre
Length of sensor -
22.1 Millimetre
Max. output current at protected output -
300 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
8 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
160 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
860 Nanometre
Width sensor -
26.7 Millimetre
