3805795

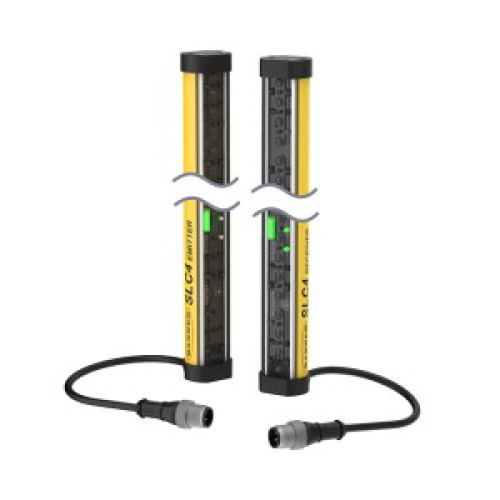

Safety Light Curtain, Emitter/Receiver Pair

Manufacturer's No: SLC4P24-160P44     Manufacturer: Turck Banner
Safety Light Curtain, Emitter/Receiver Pair

Availability On Request

£463.44
  • Safety Light Curtain, Emitter/Receiver Pair
  • Operating Voltage: 20.4 - 27.6 VDC
  • Max. Range: 2000 mm
  • Cable Length: 0.3 m
  • Protection Class: IP65
  • Zones and Status Indicators
  • Scan Field: 160 mm
  • Length: 173.2 mm
  • High Immunity to EMI, RFI, Ambient Light, Welding Sparks, and Strobe Light
  • 2x OSSD Output

Read more

  • Safety Light Curtain Type 4 (IEC 61496-1 and 61496-2)
  • Category 4 Ple (EN ISO 13849-1)
  • SIL 3 (IEC 61508) and CL3 (IEC 62061) Compliant
  • Shock and Vibration Resistant (IEC 61496-1)


Product

Manufacturer Material ID -
SLC4P24-160P44
Net Weight -
0.42kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Height of sensor -
173.2 Millimetre
Length of sensor -
22.1 Millimetre
Max. output current at protected output -
300 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
6.5 Millisecond
Resolution of the light curtain -
24 Millimetre
Safety field height -
160 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
860 Nanometre
Width sensor -
26.7 Millimetre
