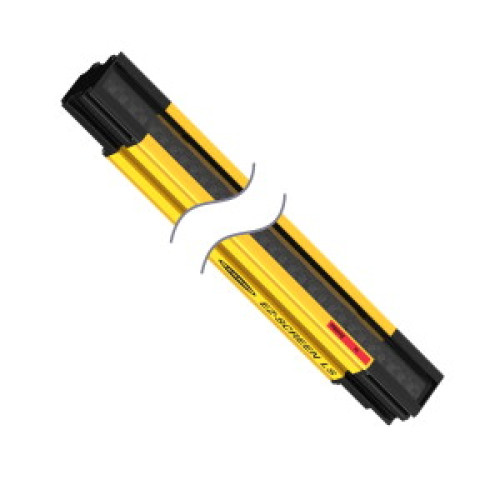

EZ SCREEN LS E & R, Safety, IP67, 24 V dc +/- 15%, 40mm Cascadable

Manufacturer's No: SLLCE40-1610-S     Manufacturer: Turck Banner
EZ SCREEN LS E & R, Safety, IP67, 24 V dc +/- 15%, 40mm Cascadable

Availability On Request

£1,614.19
  • Safety Light Curtain Emitter
  • Operating Voltage: 20.4 - 27.6 VDC
  • Max. Range: 12000 mm
  • Rugged housing with IP67 protection class
  • Diagnosis display for status and error indication
  • Scan Field Length: 1610 mm
  • Optical Alignment aid with no blind zone
  • Range: 0.1 - 12 m
  • Resolution: 40 mm
  • Automatic cascade configuration

Read more

  • Safety Type 4 according to IEC 61496-1 and 61496-2
  • Category 4 Ple according to EN ISO 13849-1
  • SIL 3 according to IEC 61508 and CL3 according to IEC 62061
  • Shock and vibration resistant according to IEC 61496-1
  • Device supplied without wiring or mounting brackets, must be selected separately.


Product

Manufacturer Material ID -
SLLCE40-1610-S
Net Weight -
3.54kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39120000

Technical Specification

Ambient temperature -
-20 Degrees celsius
Fade-out possible -

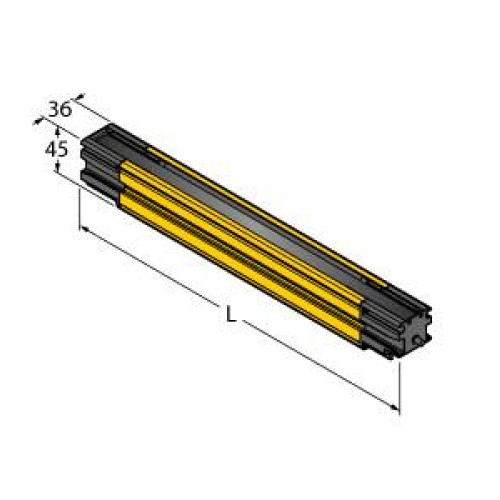

Height of sensor -
1615 Millimetre
Length of sensor -
45 Millimetre
Reaction time -
14.6 Millisecond
Resolution of the light curtain -
40 Millimetre
Safety field height -
1610 Millimetre
Suitable for safety functions -
Type of electric connection -
Flat plug-in connection
Width sensor -
36 Millimetre
