3089677

EZ-SCREEN LS, Pair, Resolution: 14, Range: 12 m (40 ft), Defined Area: 1050 (41.3 in), Housing: Black, 8-pin 300 M12 Pigtail QD, 2

Manufacturer's No: SLLP14-1050P88     Manufacturer: Turck Banner
EZ-SCREEN LS, Pair, Resolution: 14, Range: 12 m (40 ft), Defined Area: 1050 (41.3 in), Housing: Black, 8-pin 300 M12 Pigtail QD, 2x OSSD, EDM, Fault Out

Availability On Request

£3,261.05

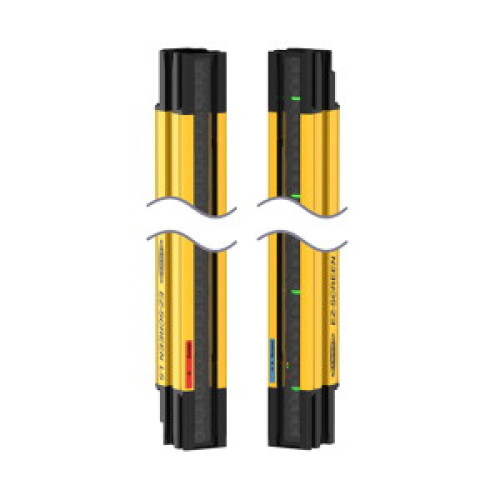

  • Safety Light Curtain
  • Emitter/Receiver Pair
  • Max. Range: 12,000 mm
  • Scan Field Length: 1,050 mm
  • Range: 0.1 to 12 m
  • Resolution: 14 mm
  • Operating Voltage: 24 VDC
  • Cable Length: 0.3 m
  • Rugged Housing with IP67 Protection Class
  • Diagnosis Display for Status and Error Indication

Read more

  • Optical Alignment Aid
  • No Blind Zone
  • Safety Type 4 per IEC 61496-1 and 61496-2
  • Category 4 Ple per EN ISO 13849-1
  • SIL 3 per IEC 61508 and CL3 per IEC 62061
  • Shock and Vibration Resistant per IEC 61496-1


Product

Manufacturer Material ID -
SLLP14-1050P88
Net Weight -
0.60kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216
