3089533

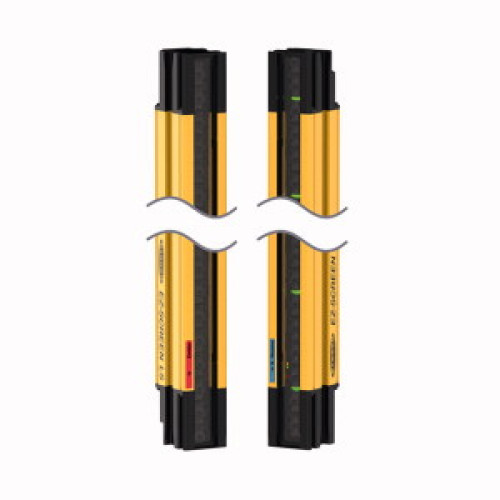

EZ-SCREEN LS, Pair, Resolution: 14, Range: 12 m (40 ft), Defined Area: 630 (24.8 in), Housing: Black, 5-pin 300 M12 Pigtail QD, 2x

Manufacturer's No: SLLP14-630P55     Manufacturer: Turck Banner
EZ-SCREEN LS, Pair, Resolution: 14, Range: 12 m (40 ft), Defined Area: 630 (24.8 in), Housing: Black, 5-pin 300 M12 Pigtail QD, 2x OSSD output only

Availability On Request

£2,247.53
  • Safety Light Curtain
  • Emitter/Receiver Pair
  • Max. Range: 12,000 mm
  • Scan Field Length: 630 mm
  • Range: 0.1 to 12 m
  • Resolution: 14 mm
  • No Blind Zone
  • Operating Voltage: 24 VDC
  • Cable Length: 0.3 m
  • Rugged Housing

Read more

  • Protection Class: IP67
  • Diagnosis Display for Status and Error Indication
  • Optical Alignment Aid
  • Safety Light Curtain Type 4 (IEC 61496-1 and 61496-2)
  • Category 4 Ple (EN ISO 13849-1)
  • SIL 3 (IEC 61508 SIL 3 and IEC 62061)
  • Shock and Vibration Resistant (IEC 61496-1)
  • No Restart Interlock


Product

Manufacturer Material ID -
SLLP14-630P55
Net Weight -
4.40kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

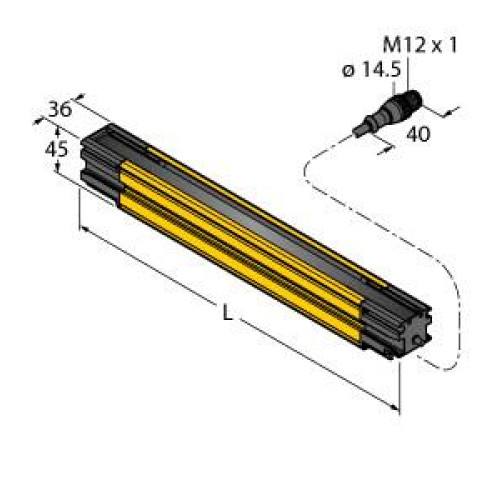

Technical Specification

Ambient temperature -
-20 Degrees celsius
Fade-out possible -
Height of sensor -
635 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
20.1 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
630 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£2,247.53
