3089672

EZ-SCREEN LS, Pair, Resolution: 14, Range: 12 m (40 ft), Defined Area: 700 (27.6 in), Housing: Black, 8-pin 300 M12 Pigtail QD, 2x

Manufacturer's No: SLLP14-700P88     Manufacturer: Turck Banner
EZ-SCREEN LS, Pair, Resolution: 14, Range: 12 m (40 ft), Defined Area: 700 (27.6 in), Housing: Black, 8-pin 300 M12 Pigtail QD, 2x OSSD, EDM, Fault Out

Availability On Request

£2,416.30

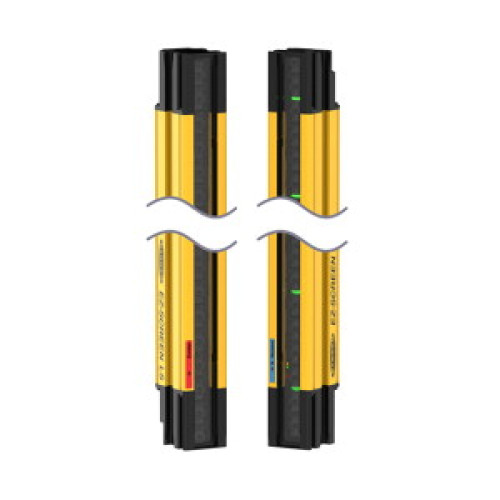

  • Safety Light Curtain, Emitter/Receiver Pair
  • Max. Range: 12,000 mm
  • Scan Field Length: 700 mm
  • Range: 0.1 to 12 m
  • Resolution: 14 mm
  • Operating Voltage: 24 VDC
  • Cable Length: 0.3 m
  • Rugged housing, Protection Class IP67
  • Diagnosis Display for status and error indication
  • Optical Alignment Aid

Read more

  • No Blind Zone
  • Safety Light Curtain Type 4 acc. to IEC 61496-1 and 61496-2
  • Category 4 Ple acc. to EN ISO 13849-1
  • SIL 3 acc. to IEC 61508 SIL 3 and CL3 acc. to IEC 62061
  • Shock and Vibration Resistant acc. to IEC 61496-1


Product

Manufacturer Material ID -
SLLP14-700P88
Net Weight -
4.77kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Fade-out possible -

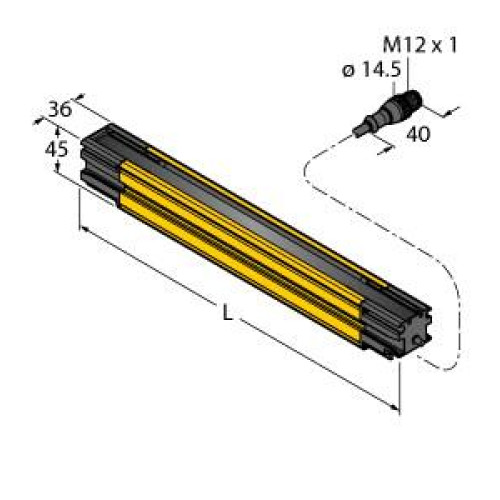

Height of sensor -
705 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
21.8 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
700 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£2,416.30
