3089704

EZ-SCREEN LS, Pair, Resolution: 23, Range: 12 m (40 ft), Defined Area: 1330 (52.4 in), Housing: Black, 8-pin 300 M12 Pigtail QD, 2

Manufacturer's No: SLLP23-1330P88     Manufacturer: Turck Banner
EZ-SCREEN LS, Pair, Resolution: 23, Range: 12 m (40 ft), Defined Area: 1330 (52.4 in), Housing: Black, 8-pin 300 M12 Pigtail QD, 2x OSSD, EDM, Fault Out

Availability On Request

£3,242.90
  • Safety Light Curtain, Emitter/Receiver Pair
  • Max. Range: 12,000 mm
  • Scan Field Length: 1,330 mm
  • Range: 0.1 to 12 m
  • Resolution: 23 mm
  • Operating Voltage: 24 VDC
  • Cable Length: 0.3 m
  • Rugged housing with IP67 protection class
  • Diagnosis display for status and error indication
  • Optical Alignment aid with no blind zone

Read more

  • Safety light curtain type 4 according to IEC 61496-1 and 61496-2
  • Category 4 Ple according to EN ISO 13849-1
  • SIL 3 according to IEC 61508 SIL 3 and CL3 according to IEC 62061
  • Shock and vibration resistant according to IEC 61496-1


Product

Manufacturer Material ID -
SLLP23-1330P88
Net Weight -
8.34kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39101628

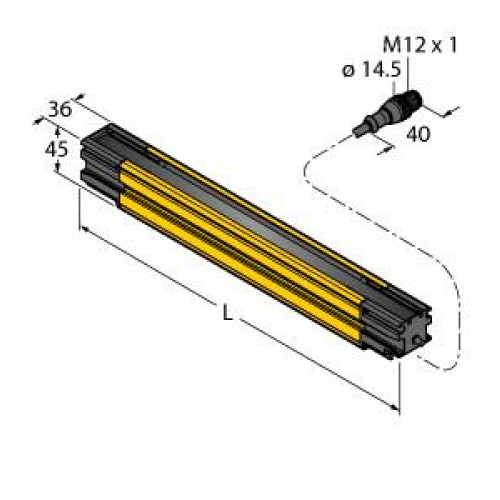

Technical Specification

Ambient temperature -
-20 Degrees celsius
Fade-out possible -
Height of sensor -
1335 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
20.9 Millisecond
Resolution of the light curtain -
23 Millimetre
Safety field height -
1330 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£3,242.90
