3089709

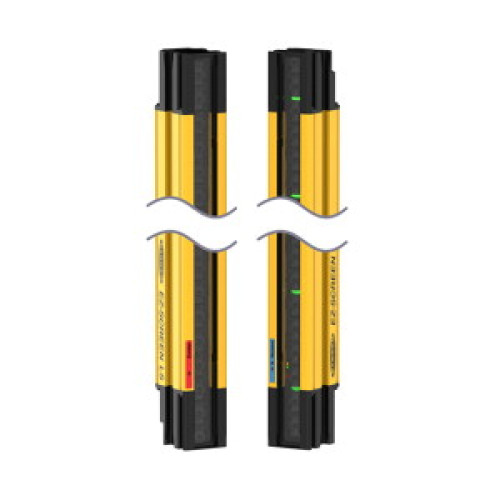

EZ-SCREEN LS, Pair, Resolution: 23 mm, Range: 12 m (40 ft), Defined Area: 1680 mm (66.1 in), Housing: Black, 8-pin 300 mm M12 Pigt

Manufacturer's No: SLLP23-1680P88     Manufacturer: Turck Banner
EZ-SCREEN LS, Pair, Resolution: 23 mm, Range: 12 m (40 ft), Defined Area: 1680 mm (66.1 in), Housing: Black, 8-pin 300 mm M12 Pigtail QD, 2x OSSD, EDM, Fault Out

Availability Back Order

£4,561.15
  • Type: EZ-SCREEN LS
  • Pair: 2 sensors
  • Resolution: 23 mm
  • Range: 12 m (40 ft)
  • Defined Area: 1680 mm (66.1 in)
  • Housing Color: Black
  • Connector: 8-pin 300 mm M12 Pigtail QD
  • Outputs: 2x OSSD
  • Features: EDM, Fault Out


Product

Manufacturer Material ID -
SLLP23-1680P88
Net Weight -

Additional Product Information

UNSPSC -
39101628

Technical Specification

Ambient temperature -
-20 Degrees celsius
Fade-out possible -
Height of sensor -
1685 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
25.2 Millisecond
Resolution of the light curtain -
23 Millimetre
Safety field height -
1680 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner

Availability Back Order

£4,561.15
