3089698

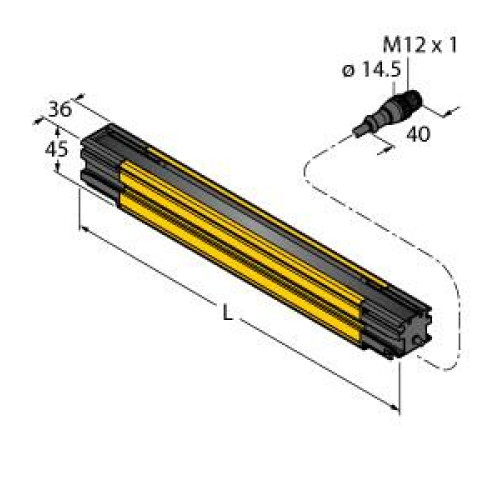

EZ-SCREEN LS, Pair, Resolution: 23, Range: 12 m (40 ft), Defined Area: 910 (35.8 in), Housing: Black, 8-pin 300 M12 Pigtail QD, 2x

Manufacturer's No: SLLP23-910P88     Manufacturer: Turck Banner
EZ-SCREEN LS, Pair, Resolution: 23, Range: 12 m (40 ft), Defined Area: 910 (35.8 in), Housing: Black, 8-pin 300 M12 Pigtail QD, 2x OSSD, EDM, Fault Out

Availability On Request

£2,375.47
  • Safety Light Curtain, Emitter/Receiver Pair
  • Max. range: 12000 mm
  • Scan field length: 910 mm
  • Range: 0.1…12 m
  • Resolution: 23 mm
  • No blind zone
  • Operating voltage: 24 VDC
  • Cable length: 0.3 m
  • Rugged housing, Shock and vibration resistant (IEC 61496-1)
  • Protection class: IP67

Read more

  • Diagnosis display for status and error indication
  • Optical Alignment aid
  • Safety light curtain type 4 (IEC 61496-1 and 61496-2)
  • Category 4 Ple (EN ISO 13849-1)
  • SIL 3 (IEC 61508 SIL 3) and CL3 (IEC 62061)


Product

Manufacturer Material ID -
SLLP23-910P88
Net Weight -
5.62kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39101628

Technical Specification

Ambient temperature -
-20 Degrees celsius
Fade-out possible -
Height of sensor -
915 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
15.9 Millisecond
Resolution of the light curtain -
23 Millimetre
Safety field height -
910 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£2,375.47
