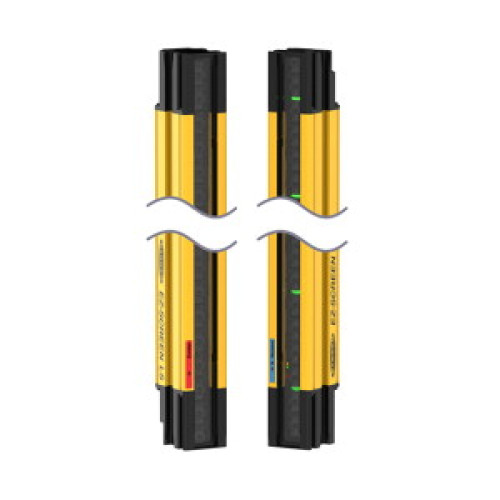

EZ-SCREEN LS, Pair, Resolution: 40, Range: 12 m (40 ft), Defined Area: 1610 (63.4 in), Housing: Black, 8-pin 300 M12 Pigtail QD, 2

Manufacturer's No: SLLP40-1610P88     Manufacturer: Turck Banner
EZ-SCREEN LS, Pair, Resolution: 40, Range: 12 m (40 ft), Defined Area: 1610 (63.4 in), Housing: Black, 8-pin 300 M12 Pigtail QD, 2x OSSD, EDM, Fault Out

Availability On Request

£3,629.44
  • Safety Light Curtain with Emitter/Receiver Pair
  • Max. Range: 12,000 mm
  • Scan Field Length: 1,610 mm
  • Range: 0.1 to 12 m with 40 mm Resolution
  • Operating Voltage: 20.4 to 27.6 VDC
  • Rugged Housing with IP67 Protection Class
  • No Blind Zone with Optical Alignment Aid
  • Diagnosis Display for Status and Error Indication
  • Shock and Vibration Resistant
  • Safety Certifications: Type 4 acc. to IEC 61496-1 and 61496-2, Category 4 Ple acc. to EN ISO 13849-1, SIL 3 acc. to IEC 61508 SIL 3, CL3 acc. to IEC 62061

Read more

  • Cable Length: 0.3 m
  • No Restart Interlock


Product

Manufacturer Material ID -
SLLP40-1610P88
Net Weight -
9.00kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39101628

Technical Specification

Ambient temperature -
-20 Degrees celsius
Fade-out possible -
Height of sensor -
1615 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
14.6 Millisecond
Resolution of the light curtain -
40 Millimetre
Safety field height -
1610 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
With restart blockage -
