3089733

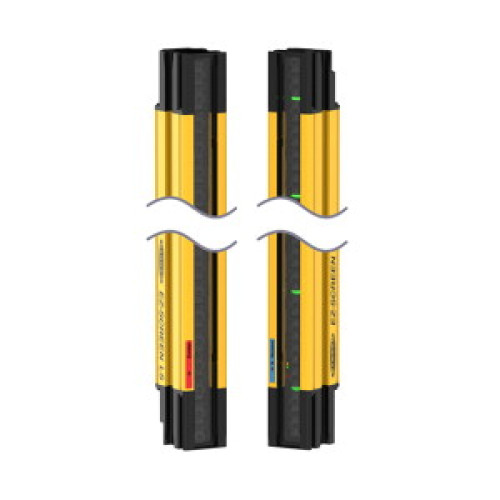

Safety Light Curtain, Emitter/Receiver Pair

Manufacturer's No: SLLP40-1750P88     Manufacturer: Turck Banner
Safety Light Curtain, Emitter/Receiver Pair

Availability On Request

POA
  • Safety Light Curtain with Emitter/Receiver Pair
  • Max. Range: 12000 mm
  • Scan Field Length: 1750 mm
  • Range: 0.1 to 12 m
  • Resolution: 40 mm
  • No Blind Zone
  • Operating Voltage: 24 VDC
  • Cable Length: 0.3 m
  • Rugged Housing with Protection Class IP67
  • Diagnosis Display for Status and Error Indication

Read more

  • Optical Alignment Aid
  • Safety Light Curtain Type 4 according to IEC 61496-1 and 61496-2
  • Category 4 Ple according to EN ISO 13849-1
  • SIL 3 according to IEC 61508 SIL 3 and CL3 according to IEC 62061
  • Shock and Vibration Resistant according to IEC 61496-1


Product

Manufacturer Material ID -
SLLP40-1750P88
Net Weight -
10.00kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39101628

Technical Specification

Ambient temperature -
-20 Degrees celsius
Fade-out possible -
Height of sensor -
1755 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
15.4 Millisecond
Resolution of the light curtain -
40 Millimetre
Safety field height -
1750 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner
