3083555

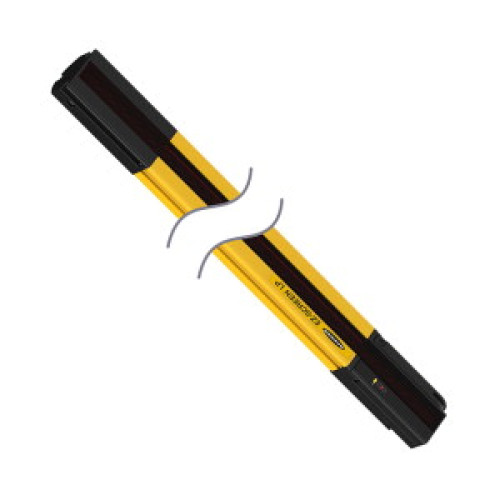

SLPR14-690P8 EZ-SCREEN Low Profile Receiver, Resolution: 14, Response (Tr): 19.5 ms, Beams: 69, Range: 0.1-7 m (4 in - 23 ft), Hei

Manufacturer's No: SLPR14-690P8     Manufacturer: Turck Banner
SLPR14-690P8 EZ-SCREEN Low Profile Receiver, Resolution: 14, Response (Tr): 19.5 ms, Beams: 69, Range: 0.1-7 m (4 in - 23 ft), Height: 690 (27.2 in), 300 (1 ft) 8-pin M12 Pigtail QD

Availability On Request

£1,662.28
  • Safety Light Curtain Receiver
  • Operating Voltage: 20-28 VDC
  • Max. Range: 7000 mm
  • Cable Length: 0.3 m with M12 x 1 connector
  • Protection Class: IP65
  • Flat housing design without blind zone
  • Adjustments via DIP switch
  • Reducible resolution with blanking function
  • Resolution: 14 mm
  • Scan Field: 690 mm (L1)

Read more

  • Personnel Safety Category: 4
  • Performance Level: PL e according to EN ISO 13849-1:2008
  • Type 4 according to IEC 61496-1, -2
  • SIL 3 according to IEC 61508


Product

Manufacturer Material ID -
SLPR14-690P8
Net Weight -
2.38kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
32151804

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
689 Millimetre
Length of sensor -
26 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
19.5 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
690 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
28 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£1,662.28
