3083577

SLPR25-410P8 EZ-SCREEN Low Profile Receiver, Resolution: 25, Response (Tr): 9.5 ms, Beams: 21, Range: 0.1-7 m (4 in - 23 ft), Heig

Manufacturer's No: SLPR25-410P8     Manufacturer: Turck Banner
SLPR25-410P8 EZ-SCREEN Low Profile Receiver, Resolution: 25, Response (Tr): 9.5 ms, Beams: 21, Range: 0.1-7 m (4 in - 23 ft), Height: 410 (16.1 in), 300 (1 ft) 8-pin M12 Pigtail QD

Availability On Request

£955.45
  • Safety Light Curtain Receiver
  • Operating Voltage: 20-28 VDC
  • Max. Range: 7000 mm
  • Cable Length: 0.3 m, with M12 x 1 connector
  • Protection Class: IP65
  • Flat housing design without blind zone
  • Adjustments via DIP switch
  • Reducible resolution with a resolution of 25 mm
  • Blanking function available

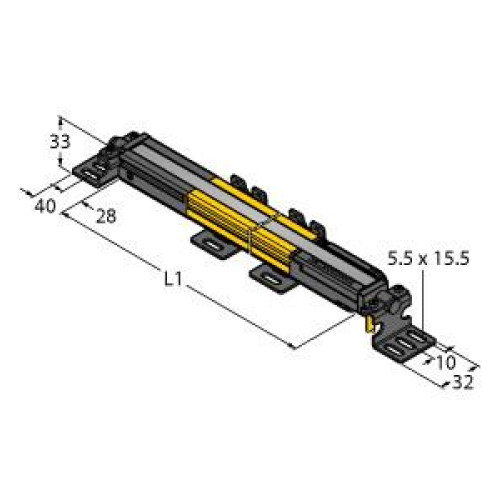

  • Scan Field: 410 mm (L1)

Read more

  • Personnel Safety Category: 4
  • Performance Level: PL e according to EN ISO 13849-1:2008
  • Type 4 according to IEC 61496-1, -2
  • SIL 3 according to IEC 61508


Product

Manufacturer Material ID -
SLPR25-410P8
Net Weight -
1.43kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216
Turck Banner

Availability On Request

£955.45
