3805289

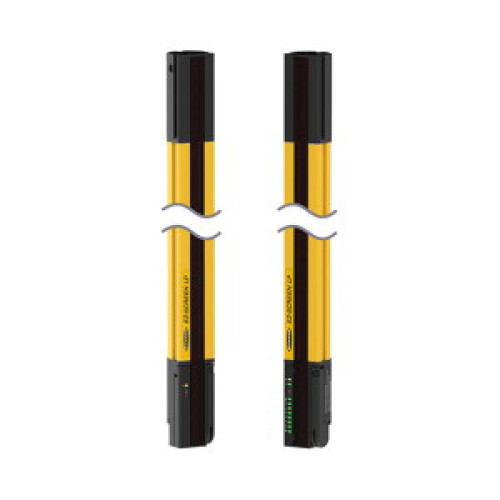

EZ SCREEN LOW PROFILE BASIC, Safety, IP54, 24 V dc +/- 15%, 14mm

Manufacturer's No: SLPVAP14-410     Manufacturer: Turck Banner
EZ SCREEN LOW PROFILE BASIC, Safety, IP54, 24 V dc +/- 15%, 14mm

Availability On Request

£1,328.38
  • Safety Light Curtain, Emitter/Receiver Pair
  • Max. range: 7000 mm
  • Resolution: 14 mm
  • Scan field: 410 mm (L1)
  • Operating voltage: 24 VDC ± 15%
  • Electrical connection: RDLP?8 with open end or DELPE?8 with M12 × 1 male connector, 8-pin
  • Protection class: IP65
  • Personnel safety category: 4
  • Safety standards: PL e acc. to EN ISO 13849-1:2008, Type 4 acc. to IEC 61496-1, -2, SIL 3 to IEC 61508
  • Flat housing design without blind zone


Product

Manufacturer Material ID -
SLPVAP14-410
Net Weight -
2.93kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39120000

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
410 Millimetre
Length of sensor -
26 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
13.5 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
410 Millimetre
Suitable for safety functions -
Type of electric connection -
Flat plug-in connection
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
850 Nanometre
Width sensor -
28 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£1,328.38
