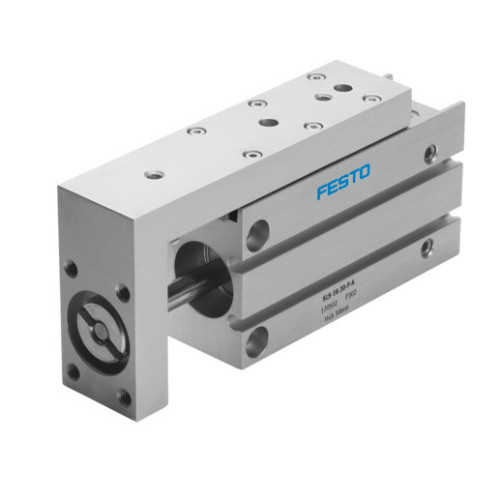

SLS-10-25-P-A Mini slide

Manufacturer's No: SLS-10-25-P-A     Manufacturer: Festo
SLS-10-25-P-A Mini slide

Availability Back Order

£425.62
  • Mini slide SLS-10-25-P-A with slim design and precision ball-bearing guide
  • Stroke: 25 mm, Piston diameter: 10 mm
  • Operating mode of drive unit: Yoke
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Guide: Ball bearing cage guide
  • Position detection: Via proximity switch
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar, 14.5 psi, 145 psi
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress

Read more

  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: -20°C to 60°C
  • Impact energy in end positions: 0.05 Nm
  • Max. force Fy: 140 N, Max. force Fz: 140 N
  • Max. moment Mx: 1.1 Nm, Max. moment My: 1.1 Nm, Max. moment Mz: 0.7 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 39 N, advance stroke: 47 N
  • Moving mass: 60 g, Product weight: 182 g
  • Type of mounting: With through-hole, Pneumatic connection: M5
  • Material cover: Anodised wrought aluminium alloy, Material guide: Steel, Material housing: High-alloy stainless steel
  • Note: Lubricated operation possible, RoHS-compliant materials

Accessories

QSM-M5-4 PUSH-IN FITTING

Product Code - 153304
Price £2.53
Back Order

QSML-M5-4 PUSH-IN L-FITTING

Product Code - 153333
Price £3.66
Back Order


Product

Manufacturer Material ID -
SLS-10-25-P-A
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
