3072433

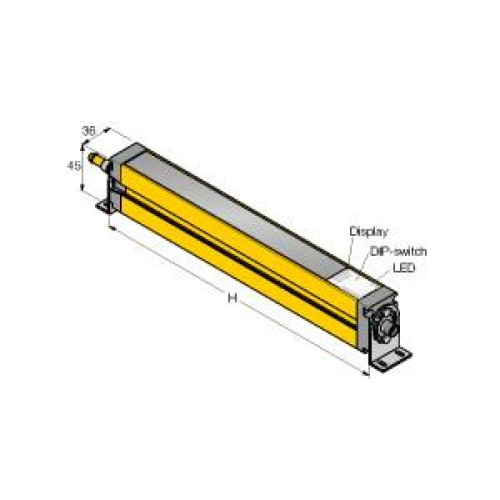

EZ-SCREEN Cascade Receiver, Resolution: 30, Range: 18 m (60 ft), Defined Area: 1650 (65.0 in), Housing Length: 1719 (67.7 in), Con

Manufacturer's No: SLSCR30-1650Q8     Manufacturer: Turck Banner
EZ-SCREEN Cascade Receiver, Resolution: 30, Range: 18 m (60 ft), Defined Area: 1650 (65.0 in), Housing Length: 1719 (67.7 in), Connection: 8-pin M12 Connector

Availability On Request

£3,031.49
  • Light screen for machine safety applications
  • Cascadable receiver, up to 4 modules
  • Operating voltage: 20-28 VDC
  • Max. range: 18000 mm
  • M12 × 1 male connector, 8-pin
  • Blanking function
  • Protection class: IP65
  • Adjustments via DIP switch
  • Resolution: 30 mm
  • Scan field: 1650 mm

Read more

  • Operating voltage: 24 VDC ± 15%
  • Personnel safety category 4
  • Performance Level (PL) e according to EN ISO 13849-1:2008
  • Type 4 according to IEC 61496-1, -2
  • SIL 3 according to IEC 61508
  • Includes two EZA-MBK-11 mounting brackets; devices with a length of 900 mm or more also include one EZA-MBK-12


Product

Manufacturer Material ID -
SLSCR30-1650Q8
Net Weight -
0.96kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
1719 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
30 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
1650 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£3,031.49
