SRN10830VX

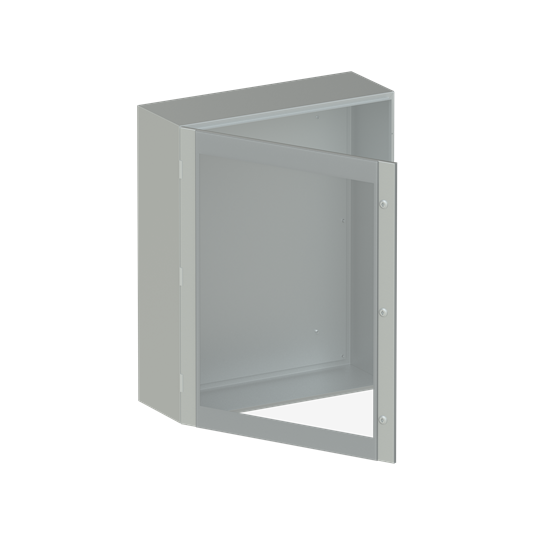

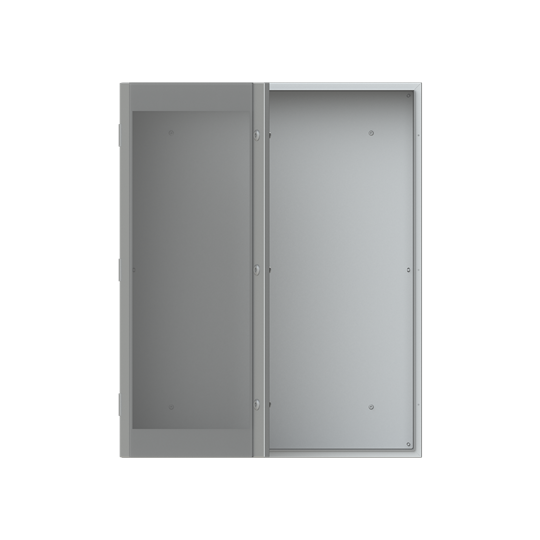

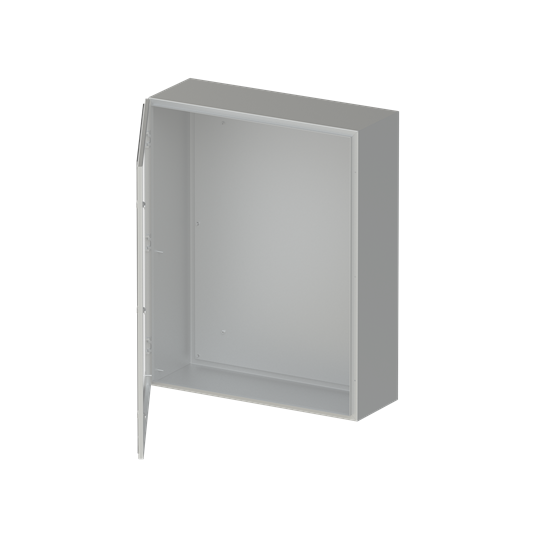

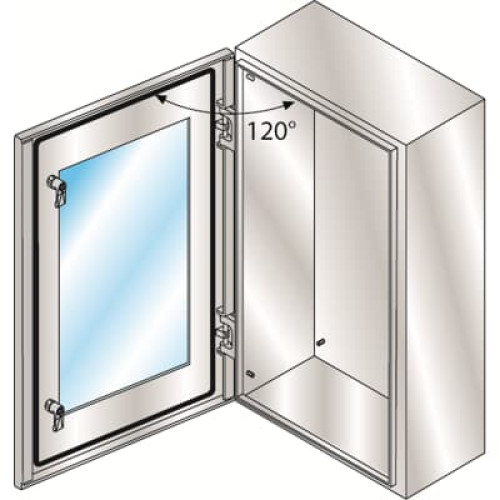

SRX-SRN10830VX SRX Enclosure

Manufacturer's No: SRX-SRN10830VX     Manufacturer: ABB
SRX-SRN10830VX SRX Enclosure

Availability On Request

£1,806.13
  • SRX-SRN10830VX SRX Enclosure
  • Stainless steel enclosure with glass door
  • Dimensions: 1000mm x 800mm x 300mm


Product

Manufacturer Material ID -
SRX-SRN10830VX
Net Weight -
37.20kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
IT
UNSPSC -
31261502

Technical Specification

Colour -
UN
RAL-number -
-
Surface protection -
UN
Number of rows -
-
Number of conduit inlets -
-
Width in number of modular spacings -
-
Number of modules -
-
Nominal current (In) -
- Ampere
Built-in depth -
232 Millimetre
Type of cover -
Door
Material housing -
Stainless steel
Impact strength -
IK09
Degree of protection (IP) -
IP66
Circuit integrity -
None
Cover model -
None
Degree of protection (IP rating) -
IP66
Degree of protection (NEMA) -
4X
Depth -
300 Millimetre
Height -
1000 Millimetre
Housing material -
Stainless steel
Impact resistance (IK rating) -
IK09
Internal depth -
283.5 Millimetre
Mounting method -
Surface mounted
Number of openings for flange plates -
2
Plate thickness cabinet -
1.2 Millimetre
Plate thickness door/cover -
1.2 Millimetre
Protection class -
I
Recess depth -
232 Millimetre
Suitable for outdoor use -
Transparent cover/door -
Type of covering -
Door
Type of door -
Single
Width -
800 Millimetre
With lock -
ABB

Availability On Request

£1,806.13
