7TCA091160R0567

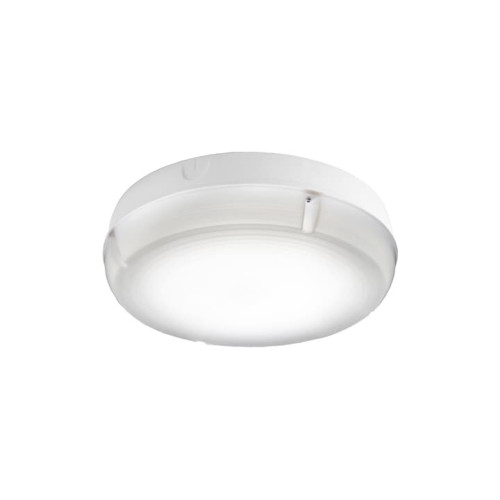

CORDONA LED 2D M3 WH/OPL-OP SLFTST

Manufacturer's No: STCPW4LA1     Manufacturer: ABB
CORDONA LED 2D M3 WH/OPL-OP SLFTST

Availability On Request

£310.32
  • Product: CORDONA LED 2D M3 WH/OPL-OP SLFTST
  • Type: Cordona Decorative LED Luminaire
  • Input Voltage: 220-240 V AC, 50/60 Hz
  • Power: 2 LED, 2 W
  • Brightness: 1830/207 Lumens
  • Features: Automatic Self Test
  • Operating Temperature: 0-30°C
  • Color: White/Opal


Product

Manufacturer Material ID -
STCPW4LA1
Net Weight -
2.57kg

Additional Product Information

Commodity Code -
9405616000
Country of Origin -
GB
UNSPSC -
39122330

Technical Specification

Lamp included -
Battery chemistry -
NiCd
Colour temperature -
4000 Kelvin
Control gear -
LED driver constant current
Cover material -
Plastic opal
Degree of protection (IP rating) -
IP65
Function -
Escape route lighting
Height/depth -
101 Millimetre
Housing colour -
White
Housing material -
Plastic
Impact resistance (IK rating) -
IK10
Length -
350 Millimetre
Light distribution -
Diffuser
Light source included -
Light source type -
LED non-replaceable
Luminous flux in standby mode -
207 Lumen
Maximum system power -
23 Watt
Monitoring equipment -
Automatic self test
Mounting method -
Wall surface mounted / ceiling surface mounting
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lighting heads -
1
Power factor -
0.87
Power supply system -
Peripheral (individual battery)
Protection class -
I
Rated ambient temperature acc. IEC62722-2-1 -
0 Degrees celsius
Type of cabling -
Ending
Voltage type -
AC
Width -
350 Millimetre
With remote switch connection -
