7TCA091160R0579

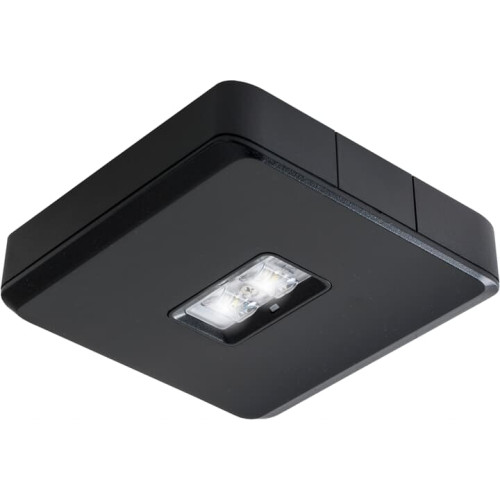

SFC M3 AUTOTST ESC-L4M BLK

Manufacturer's No: STLU3LB1E     Manufacturer: ABB
SFC M3 AUTOTST ESC-L4M BLK

Availability Back Order

£570.48
  • Model: SFC M3 AUTOTST ESC-L4M BLK
  • Type: Surface Mount Luminaire
  • Serenga 2 Escape Route
  • Lamp Type: 1 LED 2 W
  • Lamp Output: 203 Lumens
  • Power Supply: 220-240 V AC, 50 Hz
  • Environment Temperature: 5-40°C
  • Features Automatic Self Test
  • Color: Black


Product

Manufacturer Material ID -
STLU3LB1E
Net Weight -
0.97kg

Additional Product Information

Commodity Code -
9405490000
Country of Origin -
GB
UNSPSC -
55121703

Technical Specification

Wiring system -
Continuous circuit/emergency circuit
Lamp included -
Battery chemistry -
NiMH
Colour temperature -
5600 Kelvin
Connection type -
Screw connection
Control gear -
LED driver constant current
Cover material -
Plastic transparent
Degree of protection (IP rating) -
IP54
Function -
Escape route lighting
Height/depth -
35 Millimetre
Housing colour -
Black
Housing material -
Aluminium
Length -
150 Millimetre
Light source included -
Light source type -
LED non-replaceable
Maximum system power -
3 Watt
Monitoring equipment -
Automatic self test
Mounting method -
Ceiling surface mounting
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of poles -
4
Power factor -
0.85
Power supply system -
Peripheral (individual battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
5 Degrees celsius
Rated luminous flux acc. IEC 62722-2-1 -
177 Lumen
Type of cabling -
Suitable for through wiring
Voltage type -
AC
Width -
150 Millimetre
ABB

Availability Back Order

£570.48
