2CMA100240R1000

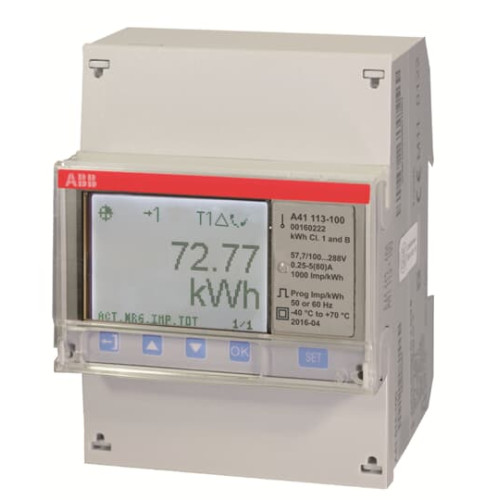

A41 113-100, Energy meter'Steel', M-bus, Single-phase, 80 A

Manufacturer's No: A41 113-100     Manufacturer: ABB
A41 113-100, Energy meter'Steel', M-bus, Single-phase, 80 A

Availability Back Order

£339.24
  • Model: A41 113-100
  • Type: Energy Meter
  • Material: Steel
  • Phase: Single-phase
  • Maximum Current: 80 A
  • Display: Large backlit pixel-oriented display
  • Suitable for industrial and commercial use
  • Compatible with 3 or 4 wire systems
  • Wide voltage range
  • Instrumentation values, 25 alarms, and event logs

Read more

  • Direct connected for active energy measurement
  • Output for pulses or alarms
  • Communication: M-Bus
  • Accuracy Class: 1.0 (Class B for MID meters)
  • IEC and MID approved and verified


Product

Manufacturer Material ID -
A41 113-100
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
90283011
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
41113600

Technical Specification

-
ABB
Tariff control -
UN
Nominal voltage (Un) L-L -
- Volt
Degree of protection (NEMA) -
UN
Model -
Direct measurement
Suitable for -
Purchase
Type of indication -
Digital
Frequency -
50 Hertz
Degree of protection (IP) -
IP20
Type of interface -
M-bus
Energy type -
Effective power
Pulse rate -
1 Pulse constant
Nominal voltage (Un) N-L -
57.7 Volt
Accuracy class -
B
Approval -
Measuring Instruments Directive
Calibrated -
Degree of protection (IP rating) -
IP20
Depth -
65 Millimetre
Escapement mechanism -
Height -
26.5 Millimetre
Interface type -
M-bus
Max. current (Imax) -
80 Ampere
Mounting method -
DRA (DIN-rail adapter)
Nominal current (In) -
80 Ampere
Number of positions total (counter) -
7
Pole type -
Single phase
Power consumption -
0.807 Watt
Pulse output -
Electrical
Pulse type -
S0
Tariff type -
One-tariff
Type of indicator -
Digital
Type of meter -
Electronic
Width -
70 Millimetre
Width in number of modular spacings -
4
ABB

Availability Back Order

£339.24
