2CMA170523R1000

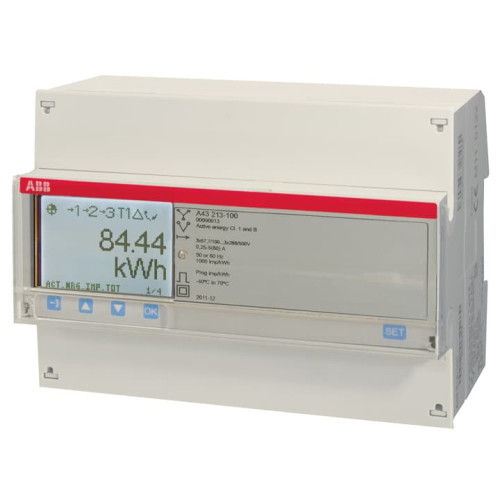

A43 213-100, Energy meter'Bronze', M-bus, Three-phase, 5 A

Manufacturer's No: A43 213-100     Manufacturer: ABB
A43 213-100, Energy meter'Bronze', M-bus, Three-phase, 5 A

Availability Back Order

£357.69
  • Model: A43 213-100 Energy Meter 'Bronze'
  • Type: Three-phase, M-Bus
  • Current Rating: 5 A
  • Display: Large backlit pixel-oriented display
  • Suitable for: Industry, commercial buildings
  • Compatibility: 3 or 4 wire systems with wide voltage range
  • Features: Instrumentation values, 25 alarms, event logs
  • Measurement: Active and reactive energy for three-phase direct connection
  • Energy Registers: Import/export in different registers, total
  • Output: One output for pulses or alarm

Read more

  • Communication: M-Bus
  • Accuracy: Class 1.0 (Class B for MID meters)
  • Certifications: IEC, MID approved and verified


Product

Manufacturer Material ID -
A43 213-100
Net Weight -
0.54kg

Additional Product Information

Commodity Code -
90283019
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
41113600

Technical Specification

-
ABB
Tariff control -
UN
Degree of protection (NEMA) -
UN
Model -
Direct measurement
Suitable for -
Purchase/supply
Type of indication -
Digital
Frequency -
50 Hertz
Degree of protection (IP) -
IP20
Type of interface -
M-bus
Energy type -
Effective power and blind power
Pulse rate -
1 Pulse constant
Nominal voltage (Un) N-L -
57.7 Volt
Nominal voltage (Un) L-L -
100 Volt
Accuracy class -
B
Approval -
Measuring Instruments Directive
Calibrated -
Degree of protection (IP rating) -
IP20
Depth -
65 Millimetre
Escapement mechanism -
Height -
26.5 Millimetre
Interface type -
M-bus
Max. current (Imax) -
80 Ampere
Mounting method -
DRA (DIN-rail adapter)
Nominal current (In) -
80 Ampere
Number of positions total (counter) -
7
Pole type -
Four conductor
Power consumption -
0.807 Watt
Pulse output -
Electrical
Pulse type -
S0
Tariff type -
One-tariff
Type of indicator -
Digital
Type of meter -
Electronic
Width -
123 Millimetre
Width in number of modular spacings -
7
ABB

Availability Back Order

£357.69
