2CMA100177R1000

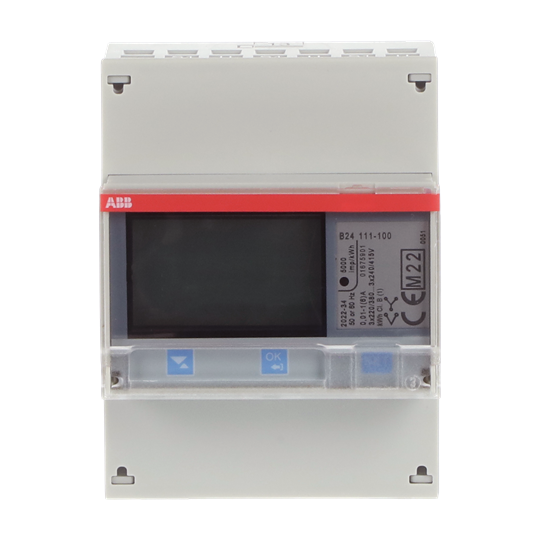

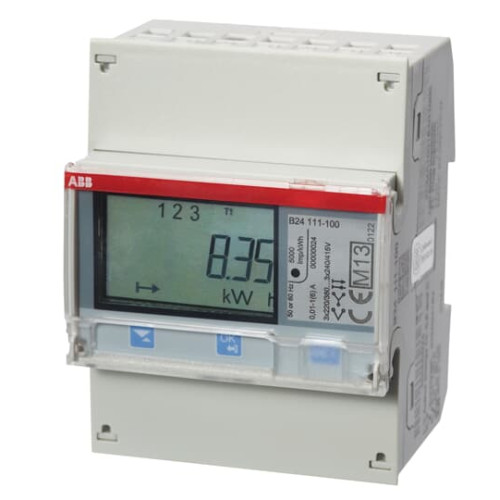

B24 111-100, Energy meter'Steel', IR port, Three-phase, 1 A

Manufacturer's No: B24 111-100     Manufacturer: ABB

Availability Back Order

£202.07
  • Model: B24 111-100
  • Type: Energy Meter
  • Material: Steel
  • Features: IR Port, Backlit Display
  • Configuration: Three-phase, 3 or 4 wire systems
  • Instrumentation Values: Multiple
  • Alarms: 25 possible
  • Event Logs: Available
  • Transformer Connection: Three-phase for active energy
  • Output: Pulses or Alarm

Read more

  • Accuracy Class: 1.0 (B for MID meters)
  • Certifications: IEC Approved, MID Approved, Verified


Product

Manufacturer Material ID -
B24 111-100
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
90283019
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
41113600

Technical Specification

-
ABB
Tariff control -
UN
Degree of protection (NEMA) -
UN
Model -
Measurement transformer
Suitable for -
Purchase
Type of indication -
Digital
Frequency -
50 Hertz
Degree of protection (IP) -
IP20
Type of interface -
Other
Energy type -
Effective power
Pulse rate -
1 Pulse constant
Nominal voltage (Un) N-L -
230 Volt
Nominal voltage (Un) L-L -
380 Volt
Accuracy class -
B
Approval -
Measuring Instruments Directive
Calibrated -
Degree of protection (IP rating) -
IP20
Depth -
65 Millimetre
Escapement mechanism -
Height -
26.5 Millimetre
Interface type -
Other
Max. current (Imax) -
6 Ampere
Mounting method -
DRA (DIN-rail adapter)
Nominal current (In) -
6 Ampere
Number of positions total (counter) -
7
Pole type -
Four conductor
Power consumption -
0.721 Watt
Pulse output -
Electrical
Pulse type -
S0
Tariff type -
One-tariff
Type of indicator -
Digital
Type of meter -
Electronic
Width -
70 Millimetre
Width in number of modular spacings -
4
ABB

Availability Back Order

£202.07
