1SCA022721R3300

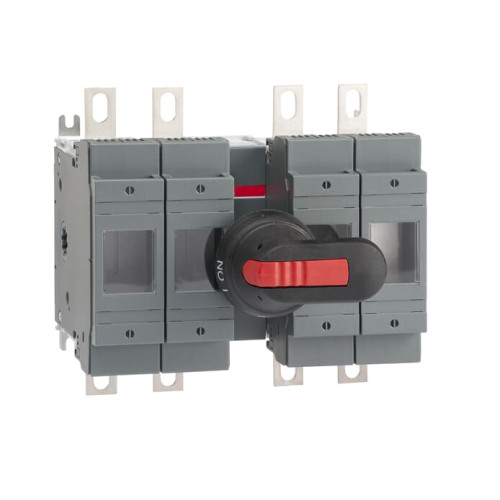

Switch Fuses,Front Operated,4-pole,22 (Between the Poles),British Standard,B1-B2,Handle and shaft included,Switched - With Solid L

Manufacturer's No: 1SCA022721R3300     Manufacturer: ABB
Switch Fuses,Front Operated,4-pole,22 (Between the Poles),British Standard,B1-B2,Handle and shaft included,Switched - With Solid Link

Availability Available to order

£587.81
  • Switch Fuses
  • Front Operated
  • 4-pole
  • 22 mm between the poles
  • British Standard
  • B1-B2
  • Handle and shaft included
  • Switched with solid link


Product

Manufacturer Material ID -
1SCA022721R3300
Net Weight -
4.20kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
FI
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
ABB
Degree of protection (IP), front side -
UN
Cable entry -
Other
Rated permanent current Iu -
200 Ampere
Number of poles -
4
Conditioned rated short-circuit current Iq -
80 kiloampere
Suitable for fuses -
Shape B1-B3
Type of electrical connection of main circuit -
Bolt connection
Type of control element -
Long turning handle
Version as main switch -
Version as safety switch -
Rated operation power at AC-23, 400 V -
200 Kilowatt
Rated short-time withstand current lcw -
8 kiloampere
Suitable for busbar mounting -
Max. rated operation voltage Ue AC -
1000 Volt
Position control element -
Front
Equipped with connectors -
ABB

Availability Available to order

£587.81
