2CDS253001R0634

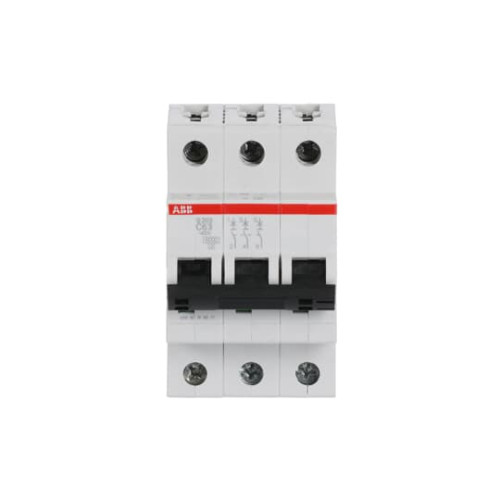

3-Pole, Type C 6kA, 63A

Manufacturer's No: S203C63     Manufacturer: ABB

Availability In Stock

£82.02
  • 3-Pole, Type C 6kA, 63A miniature circuit breakers
  • Current limiting with delayed thermal tripping mechanism for overload protection
  • Electromechanic tripping mechanism for short circuit protection
  • Available in different characteristics (B,C,D,K,Z) and configurations (1P,1P+N,2P,3P,3P+N,4P)
  • Breaking capacities up to 6 kA at 230/400 V AC
  • Rated currents up to 63A
  • Complies with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 standards
  • Suitable for residential, commercial, and industrial applications
  • Bottom-fitting auxiliary contact available to save 50% space


Product

Manufacturer Material ID -
S203C63
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

-
ABB
Built-in depth -
69 Millimetre
Release characteristic -
C
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
3
Number of protected poles -
3
Over voltage category -
3
Pollution degree -
3
Power loss -
14.4 Watt
Rated current -
63 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
6 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
20 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
10 kiloampere
Rated voltage -
400 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
Other
Width in number of modular spacings -
3
ABB
