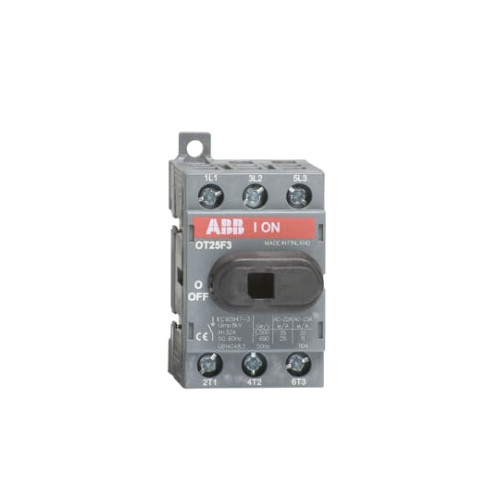

1SCA104857R1001

3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp te

Manufacturer's No: OT25F3     Manufacturer: ABB
3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included

Availability In Stock

£25.29
  • 3-pole switch-disconnector
  • Front operated
  • Base mounted
  • DIN-rail mountable
  • Non-fusible disconnect switch
  • Protected clamp terminals


Product

Manufacturer Material ID -
OT25F3
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
FI
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
ABB
Conditioned rated short-circuit current Iq -
- kiloampere
Rated operation power at AC-3, 400 V -
9 Kilowatt
Colour control element -
Black
Suitable for ground mounting -
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated permanent current Iu -
32 Ampere
Number of poles -
3
Rated operating voltage -
750 Volt
Degree of protection (IP), front side -
IP20
Number of auxiliary contacts as change-over contact -
0
Type of electrical connection of main circuit -
Screw connection
Type of control element -
Long turning handle
Version as main switch -
Version as maintenance-/service switch -
Rated operation power at AC-23, 400 V -
9 Kilowatt
Rated short-time withstand current lcw -
0.5 kiloampere
Suitable for distribution board installation -
Max. rated operation voltage Ue AC -
750 Volt
Device construction -
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V -
25 Ampere
Switching power at 400 V -
9 Kilowatt
Rated permanent current at AC-23, 400 V -
20 Ampere
Degree of protection (NEMA) -
1
ABB

Availability In Stock

£25.29
