3VA11404EF320AA0

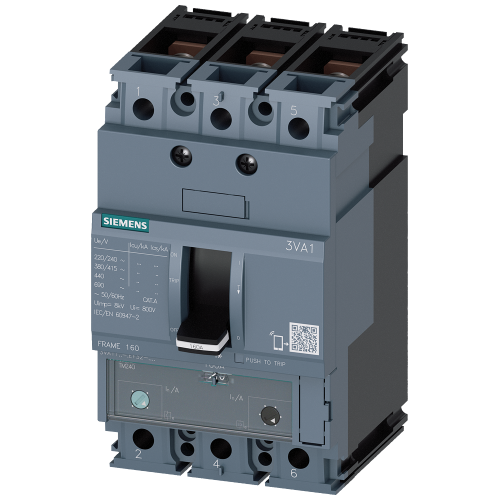

Circuit breaker 3VA1 IEC frame 160 breaking capacity class S Icu=36 kA @ 415 V

Manufacturer's No: 3VA1140-4EF32-0AA0     Manufacturer: Siemens

Availability Back Order

£209.86
  • Circuit breaker 3VA1 IEC Frame 160
  • Breaking capacity: Icu=36 kA @ 415 V
  • 3-pole, line protection TM240, ATAM
  • Rated current: In=40 A
  • Overload protection: Ir=28 A...40 A
  • Short-circuit protection: Ii=5...10 x In
  • Nut keeper kit included
Question and Answer (Q&A video)
Product video
Instructional video
Question and Answer (Q&A video)
Instructional video
Product video


Product

Manufacturer Material ID -
3VA1140-4EF32-0AA0
Net Weight -
0.96kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

-
Siemens
Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Adjustment range undelayed short-circuit release -
200 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
28 Ampere
Position of connection for main current circuit -
Front
Power loss -
10.8 Watt
Rated permanent current Iu -
40 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
36 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability Back Order

£209.86
