3VA21635HL420AA0

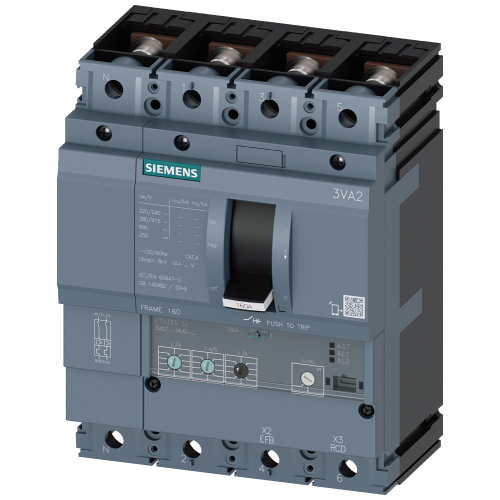

circuit breaker 3VA2 IEC Frame 160 breaking capacity class M Icu=55 kA @ 415 V 4-pole, line protection ETU320, LI, In=63 A overloa

Manufacturer's No: 3VA2163-5HL42-0AA0     Manufacturer: Siemens

Availability In Stock

£538.26
  • Circuit Breaker: 3VA2 IEC Frame 160
  • Breaking Capacity: Class M, Icu=55 kA @ 415 V
  • Configuration: 4-pole, Line Protection
  • Overload Protection: In=63 A, Ir=25 A...63 A
  • Short-Circuit Protection: Ii=1.5...12 x In
  • Neutral Conductor Protection: Adjustable (OFF, 100%)
  • Additional: Nut Keeper Kit
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2163-5HL42-0AA0
Net Weight -
2.77kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

-
Siemens
Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range undelayed short-circuit release -
94 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
25 Ampere
Position of connection for main current circuit -
Front
Power loss -
4 Watt
Rated permanent current Iu -
63 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability In Stock

£538.26
